3G SDI 16x2 Switcher with Reclock SDI Switcher

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Input Connector	16×SDI BNC Male
Output Connector	2×SDI BNC Male
Color	Black
Resolution Rratio	1080p
Application	HDTV

Detail Description

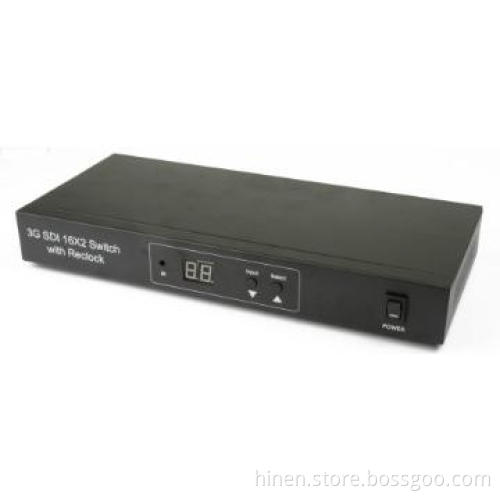

3G SDI 16x2 Switcher with Reclock SDI Switcher

Product Description

This is a switcher with 16 SDI inputs and 2 SDI outputs, anyone of the 16 SD-SDI, HD-SDI or 3G-SDI signals are switchable before transfer to the output, the two outputs output the same SDI signal.
The input signals can be switched by the button. While with RS232 interface, you can also switch the signals via computer system. Besides, the memory function makes it possible to return the last state after restarting or reconnecting.

Features

This product is specially designed with equalizer IC in its inputs and drive IC in its output. All of the inputs and output support long coaxial cable.
l Support multiple video resolution：
•      SD 480i @525i and 625i
•      HD 720p @ 24/25/30/50/60
•      HD 1080i @50/60
•      HD 1080p @24/25/30
•      3G 1080p @ 50/60
l Support multiple color space：
•      RGB or YCbCr 4:4:4 sampled
•      YCbCr 4:2:2 or 4:2:0 sampled
l Support wide range of data rates：270Mbps~2.97Gbps.
l Support multiple deep color：8bit, 10bit, 12bit.
l Compatible with HDcctv 1.0, HD-SDI (ST 292), 3G-SDI (ST 424) and SD-SDI (ST 259).
l Support Reclock, can support multiple slopes.
l Electrical protection：
• Power reverse polarity protection
•Power Overvoltage protection, but voltage must <28V
•ESD protect，Contact Discharge 8KV, Air Discharge 15KV

SPECIFICATION

Signal Input/ Output
Input Connector	16×SDI BNC Male
Output Connector	2×SDI BNC Male
Support line length (Cable is RG6 )
3G(1080P 60HZ) Mode	Front up to 100m,followed up by 100m
HD(720P 60HZ)Mode	Front up to 220m,followed up by 220m
SD(480i)Mode	Front up to 320m,followed up by 320m
Mechanical
Size(L-W-H)	350x152x46MM
Weight (Net)	1653G
Warranty
Limited Warranty	1 Year
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@ 2A
Power consumption (Max)	7.5W
Electrical protection
Power reverse polarity protection	Yes
Power Overvoltage protection	Yes, but voltage must <28V
ESD protect	Contact Discharge 8KV, Air Discharge 15KV
Regulatory Approvals
Converter Unit	FCC,CE
Power Supply	CE,FCC
Accessories Adapter
User Manual	English version

Additional Information

Payment Terms	T/T
Minimum Order	1
Lead Time / Delivery Time	30 Day(s)
Sample Available	YES
Delivery Details	Negotiable
FOB Port	Shenzhen
Loading Info	Negotiable
Packing Info	Negotiable
Target Market(s)	Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
