HDMI 1x2 Splitter with Full 3D and 4Kx2K(340MHz)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

3D	4Kx2K resolution
Resolution Ratio	1080p
Application	HDTV

Detail Description

1.0 Introduction

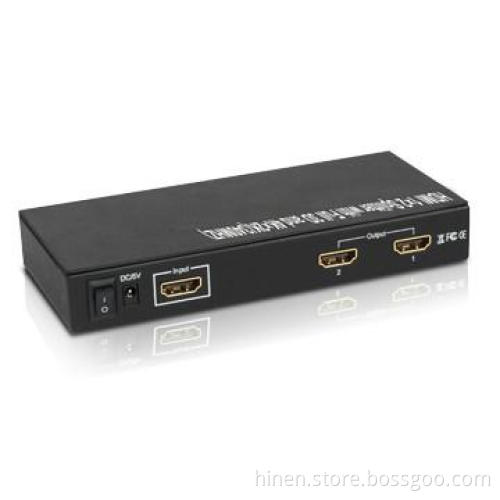

This HDMI Amplifier Splitter is an HDMI splitter with two outputs. It distributes the input of the HDMI signal into the two identical outputs simultaneously. It supports full 3D format and 4K×2K. Its video amplifier bandwidth can be up to 3.4 Gpbs/340MHz.
This HDMI Amplifier Splitter offers solutions for HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

1.1 Features

Easy to Use: Install in seconds, no need of setting.
One HDMI Input, two HDMI outputs
Supports Full 3D and 4K×2K resolution.
Supports highest video resolution 1080p.
Supports 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth.
Supports 12bit per channel (36bit all channel) deep color.
Supports HDCP 1.3
Supports uncompressed audio such as LPCM
Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby True HD）.

2.0 SPECIFICATIONS

Signal Inputs/Output
Input DDC Signal	5 volts p-p (TTL)
Maximum Single Link Range	4K×2K
Output Video	HDMI(with full 3D and 4K×2K)
Operating Frequency
Vertical Frequency Range	50/60Hz


Video Amplifier Bandwidth	3.4Gbps/340MHz
Resolutions(HDTV)
Interlaced(50&60Hz)	480i,576i,1080i
Progressive(50&60Hz)	480p,576p,720p,1080p,4K×2K
Mechanical
Size(L-W-H)	154×69.05×22.9mm
Weight(Net)
Warranty
Limited Warranty	1 Year
Environmental
Operating Temperature	0℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@ 2A
Power consumption (Max)	8W
Regulatory Approvals
Converter Unit	FCC,CE
Power Supply	CE,FCC
Accessories Adapter
AC Power Adapter	US standard, UK standard and so on
User Manual

Note: Specifications are subject to change without notice.

3.0 Package Contents

Main unit
5V DC Power Supply.
User’s Manual.

Additional Information

Payment Terms	T/T
Minimum Order	100
Lead Time / Delivery Time	21 Day(s)
Sample Available	YES
Delivery Details	Negotiable
FOB Port	Shenzhen
Loading Info	Negotiable
Packing Info	Negotiable
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
