Low power consumption HDMI Extender by TCP/IP up to 330feet

Low power consumption HDMI Extender by TCP/IP up to 330feet

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

color	white
category	HDMI
Certification	CE,FCC,ROHS,UL
Limited Warranty	1 Year Parts and Labor
resolutions	1080p/60Hz
Signal Type	Other

Detail Description

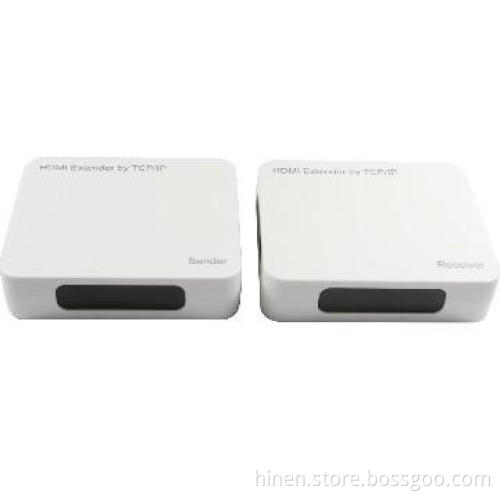

Low power consumption HDMI Extender by TCP/IP up to 330feet
P/N:CEHEIP200

1.0 Introduction

HDMI Extender by TCP/IP is based on TCP/IP standard. It extends your HD display with the resolutions of 1080p/60Hz up to 330 feet (100 meters) away from your HDMI or DVI-D source by using one CAT5e/6 cable,no special requirement for LAN cable.
With the advantage of TCP/IP standard，you can extend your HD video to multiple displays by using a Ethernet router or hub and the total distance can be up to max 660 feet.

1.1Features

low power consumption

M-JPEG encode/decode video up to 1080p.

Following TCP/IP standard.

Supports resolution up to 480p/720p/1080i/1080p.

Supports max video bandwidth to 1.65Gbps/165MHz.

CAT5e/6 cable follows the standard of IEEE-568B.

2.0 SPECIFICATIONS

Signal Input/Output
Input/Output port of sender	HDMI Female x1 RJ45 FemaleX1
Input/Output port of receiver	RJ45 FemaleX1 HDMI Female x1
Operating Frequency
VerticalFrequency Range	50/60Hz
Video Amplifier Bandwidth	Max up to1.65Gbps/165MHz
Resolutions(HDTV)
Interlaced(50&60Hz)	480i,576i, 1080i for HDMI
Progressive(50&60Hz)	480p,576p,720p,1080p for HDMI;
Mechanical
Size (L-W-H)	103×84×25mm
Weight (Net)	200g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	DC 5V@2A X2
Power consumption (Max)	Sender:2.5W Receiver:2.5W
Accessories Adapter
User Manual	English Version

3.0 Package Contents

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

Main unit No. 1 Sender
Main unit No. 2 Receiver
Two pieces of 5V DC Power Supply.
User’s Manual
