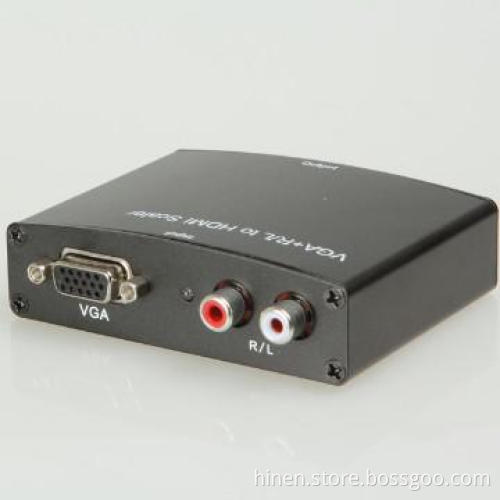

High quality VGA+R/L to HDMI Scaler Converter 2013 hot sale

High quality VGA+R/L to HDMI Scaler Converter 2013 hot sale

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Input Signal	VGA, R/L
Weight(Net)	0.68kgs
Converting Type	Other
Output Frequency	720p(50Hz/60Hz)
Video Starnard	Other

Detail Description

High quality VGA+R/L to HDMI Scaler Converter 2013 hot sale

FEATURES

l Easy to Use: Install in seconds, no need of setting.
l Convert computer’s VGA video and R/L audio into HDMI signal.
l Supports all kinds of common resolution of computer’s VGA port.
l Supports HDMI resolution to fixed 1920X720Pand1920x1080p
l Supports HDMI 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth.
l Supports HDMI 8bit per channel (24bit all channel) deep color.

SPECIFICATIONS

Signal Inputs/Output
Input Signal	VGA, R/L
Output Video signal	HDMI 720p
VGA Resolution	640x480 60/72/75/85Hz 800x600 60/72/75/85Hz 1024x768 60/70/75/85Hz 1280x720 60Hz 1280x768 60/75/85Hz 1280x800 60/70/75Hz 1280x960 60Hz 1280x1024 60Hz 1440x900 60Hz 1920x1080 60Hz 1920x1200 60Hz 1920x1440 60Hz Note:Maybe several resolutions are limited on few displays
Operating Frequency
Vertical Frequency Range	50/60Hz
Video Amplifier Bandwidth	1.65Gpbs/165MHz
Mechanical
Size(W-H-D)	88mmW x 25.5mmH x 68mmD
Weight(Net)	0.68kgs
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 95 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@2A
Power consumption (Max)	4W
Regulatory Approvals
Converter Unit	FCC,CE,
Power Supply	CE,FCC
Accessories Adapter
AC Power Adapter	US standard, UK standard and so on
User Manual

6.0 ConnectION and OperatION

Before installation, please make sure all devices you wish to connect have been turned off.
1)   Connect the VGA video and R/L audio from computer to this product. (Input cables are optional)
2)   Connect the HDMI output from this product to the TV which has HDMI input.
3)   Connect the VGA and R/L audio output of this product to the computer’s monitor and speaker if necessary.
4) Insert the DC side of 5v power supply into this product and then connect the AC side of the power supply into the wall outlet.
5)   Power on the computer and TV, choose the input of TV to its HDMI channel.
6) Press the button to switch 720P or 1080P
Attention: Insert / Extract cable gently.

This VGA+R/L to HDMI Scaler Converter converts VGA input into HDMI and allows computer users to enjoy their larger image on TV. The Converter is also along with the R/L audio to allow you to enjoy high quality sound on the HDTV.
With built-in scaler function, no matter what resolution computer’s VGA port set, this converter will fix to output HDMI 1920X1080 resolution with the best compatibility.

Additional Information

Payment Terms	T/T
Minimum Order	10
Lead Time / Delivery Time	30 Day(s)
Sample Available	YES
Delivery Details	Negotiable
FOB Port	Shenzhen
Loading Info	Negotiable
Packing Info	Negotiable
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
