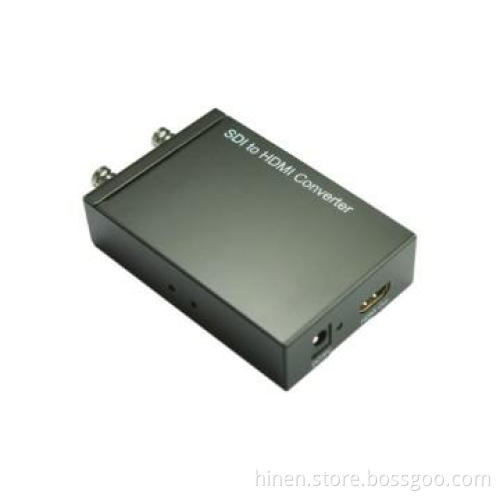

SDI to HDMI Converter easier to distribute and extend your 3G SDI sign

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Size(L-W-H)	100×70×25MM
Weight (Net)	202G
Input Connector	1xSDI BNC Male
Output Connector	1x HDMI Female(A Type), 1xSDI BNC Male
Limited Warranty	1 Year
Type	DC/AC Inverters
Output Power	1 - 200Kw
Rated Voltage	Other
Weight	202G
Output Type	Single
Dimension	100×70×25MM

Detail Description

Product Description
The SDI to HDMI Converter allows SD-SDI,HD-SDI,and 3G-SDI signal to be shown on HDMI/SDI displays while ensuring high bit rates of 2.970 G bit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter. Furthermore,thanks to the loop-through 3G-SDI design, users are able to enjoy both SDI and HDMI displays at the same time.
Features
1,Support multiple video resolutions:
• SD 525i and 625i
• HD 720p 24, 25, 30, 50 and 60
• HD 1080i 50, 60
• HD 1080p 24, 25, 30, 50 and 60
2,Support multiple color space:
• RGB or YCbCr 4:4:4 sampled
• YCbCr 4:2:2 sampled
3,Support data rates: 270m～2.97Gbps.
4,Support 8 bit, 10 bit, 12 bit of deep color.
5,Support eight channels of 48k sampling rate of digital audio
6,SDI input. Support long coaxial cable, SD model 300 m, HD mode 130 m ( RG59 cable or its quite product).
7,One way SDI output, with the Re-clock function, can support multiple cascaded.

Parameters

Input Connector	Output Connector	Operating Temperature	Storage Temperature	External Power Supply	Power consumption (Max)	Converter Unit	Power Supply	Warranty	Size(L-W-H)
1xSDI BNC Male	1x HDMI Female（A Type）, 1xSDI BNC Male	0 ℃ to +70℃	-10℃ to +80℃	5V DC@ 2A	2.5W	FCC,CE,UL	UL,CE,FCC	1 Year	100×70×25MM

Connection Diagram
