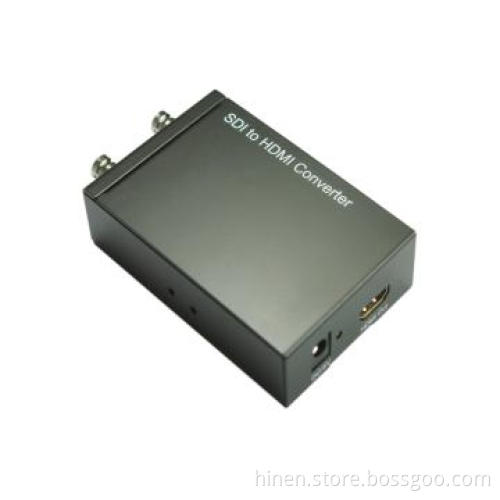

SDI to HDMI Converter, one way SDI output

SDI to HDMI Converter
P/N:SDI-H01

1.0 Introduction
This product converts SDI signal to HDMI signal so that you can appreciate your favorite videos or program in your HDMI TV or HDMI monitor.

 1.1Features
1,Support multiple video resolutions:
• SD 525i and 625i
• HD 720p 24, 25, 30, 50 and 60
• HD 1080i 50, 60
• HD 1080p 24, 25, 30, 50 and 60
2,Support multiple color space:
• RGB or YCbCr 4:4:4 sampled
• YCbCr 4:2:2 sampled
3,Support datarates: 270m～2.97Gbps.
4,Support 8 bit, 10 bit, 12 bit of deep color.
5,Support eight channels of 48k sampling rate of digital audio
6,SDI input. Support long coaxial cable, SD model 300 m, HD mode 130 m ( RG59 cable or its quite product).
7,One way SDI output, with the Re-clock function,can support multiple cascaded.


2.0 SPECIFICATIONS

Signal Inputs/Output
Input Connector	1xSDI BNC Male
Output Connector	1xHDMI Female（A Type）,   1xSDI BNC Male
Mechanical
Size(L-W-H)	100×70×25MM
Weight (Net)	202G
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@ 2A
Power consumption (Max)	2.5W
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter
User Manual	English version

Note: Specifications are subject to change without notice.

3.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

• Main unit
• 1XPower adapter 5V@2A
• User\'s Manual
