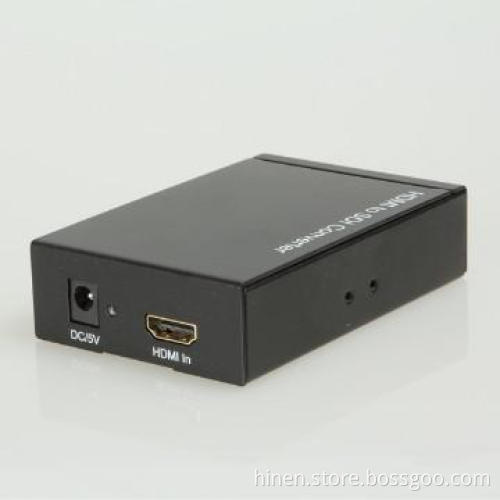

HDMI V1.3 to SDI Converter SDI input support SD,HD,3G mode

1.0 Introduction
This product is a HDMI to SDI Converter, it\'s used to convert the HDMI signal into SDI signal and allows users to enjoy the image on SDI Monitor, it can also send the HDMI signal into SDI transmission network.

1.1Features

Supports multiple video resolution:

• SD 480i, 525i and 625i
• HD 720p 24, 25, 30, 50 and 60
• HD 1080i 50, 60
• HD 1080p 24, 25, 30, 50 and 60

Supports multiple color space:

• RGB sampled
• YCbCr 4:4:4 or YCbCr 4:2:2 sampled

Supports data rate: 270m~2.97Gbps.
Supports deepcolor of 8bit, 10bit and 12bit.
Supports 8 channels of 48K sampling rate digital audio.
The SDI input supports long coaxial cable, SD mode 400m , HD mode 200m, 3G mode 100m ( cable is RG6 or equivalent products).
2 ways SDI output.
Supports HDCP specification.
Supports HDMI V1.3 specification.

2.0 SPECIFICATIONS

Signal Inputs/Output
Input Connector	1x HDMI Female（A Type）
Output Connector	2xSDI BNC Male
Mechanical
Size(L-W-H)	100×70×25MM
Weight (Net)	230g
Warranty
Limited Warranty	1 Year
Environmental
Operating Temperature	0 ℃ to +50℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@ 2A
Power consumption (Max)	4W
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter
User Manual	English version

3.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

Main unit
1XPower adapter 5V@2A
User\'s Manual
