High Speed Fashionable USB Cable 2.0

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

color	black
length	16\'
cable	2.0
Transfer Rate	High-Speed(480Mbps)
Insulation Material	Others
Application	Computer, Other, Telecommunication
Pressure	Other
Conductor Material	Aluminum

Detail Description

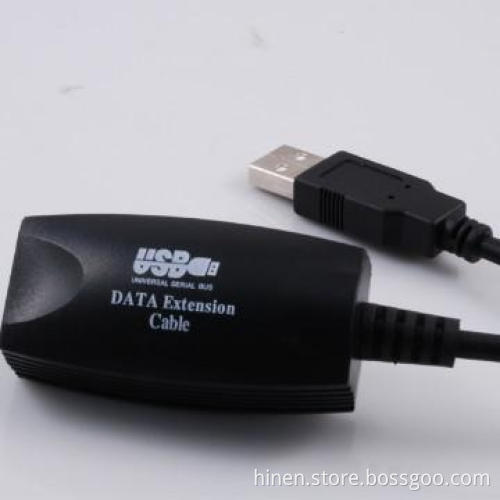

USB Extender by USB cable

Dear Customer

Thank you for purchasing this product from CE-LINK. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

1.0 Introduction

This device is an extension cable between USB device and host (computer) with embedded into connector “intelligent” integrated circuits on both sides of the cable.
The USB cable with the chip inside is not a passive extension cable. It is an active device.
The USB signals going in and out of this extension cable in both directions are buffered to assure signal quality. Unlike passive USB cables the IC prevents signal degradation. The embedded “intelligent” integrated circuit cleans, amplifies USB signal and watches USB 2.0 protocol. Its Control State Machine enables and disables USB and Cable transmitters inside the chip depending on USB signals.

2.0 Liability Statement

Every effort has been made to ensure that this product is free of defects. China Electronics Technology Limited cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. It is the responsibility of the user of the hardware to check that it is suitable for his/her requirements and that it is installed correctly. All rights reserved. No parts of this manual may be reproduced or transmitted by any form or means electronic or mechanical, including photocopying, recording or by any information storage or retrieval system without the written consent of the publisher.
China Electronics Technology Limited reserves the right to revise any of its hardware and software following its policy to modify and/or improve its products where necessary or desirable. This statement does not affect the legal rights of the user in any way.
All third party trademarks and copyrights are recognized. The CE-LINK logo is the registered trademarks of China Electronics Technology Limited.

3.0 Features

This USB Extender has many features that enable it to perform in a superior manner. Among those features you will find:

1. Compliant with USB 2.0 specification
2. Provide support for any high-speed (480 Mb/s) or low-speed (1.5 Mb/s) USB device
3. Some low power low-speed USB devices can work with cable up 5 meters
4. Embedded USB 2.0 Transceivers prevents signal loss
5. Downstream connector: Female, Type “A”, USB Approved Connector;
6. Upstream connector: Male, Type “A”, USB Approved Connect.

4.0 SPECIFICATIONS

Input interface	USB Male
Output interface	USB Female
Frequency	12Mbps
Size（L-W-H）	60X29X27 mm
Weight(Net)	185g
Limited Warranty	1 Year Parts and Labor
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 95 % RH (no condensation)
Converter Unit	FCC,CE,

Additional Information

Payment Terms	T/T
Minimum Order	200
Lead Time / Delivery Time	10 Day(s)
Sample Available	YES
Delivery Details	payment before shipment
FOB Port	Shenzhen
Loading Info	AIR SHIP LAND all acceptable
Packing Info	polybag, blister, gift box
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
