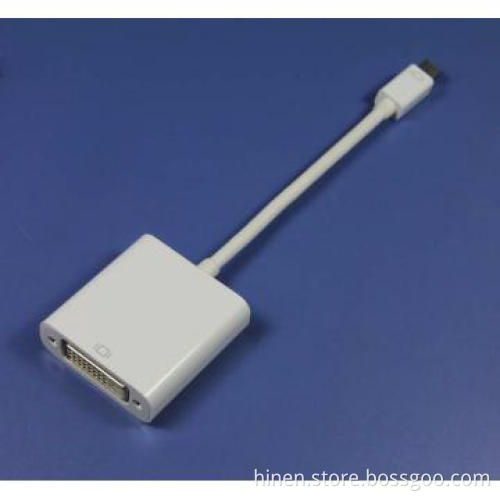

Mini DisplayPort to DVI Adapter

1. Introduction

The Mini DisplayPort to DVI Adapter seamlessly connect next generation DisplayPort based MacBook, MacBook Pro, or MacBook Air with a Mini DisplayPort to conventional DVI displays, such as CRT, LCD monitors and projectors. Mini DisplayPort offers a unified, scalable, and cost effective interface for embedded and external display applications. It not only has an elegant appearance with the white color but also brings much convenience with its small size.
It offers solutions for digital entertainment center, projector factory, noisy space and security concerns, conference room presentation, school and corporate training environments.


2. Features

• Support Mini DisplayPort 1.1 input andDVI output.
• Support DVI highest video resolution 1080p.
• Support DVI 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
• Support DVI 12bit per channel (36bit all channel) deep color.
• Powered from Mini DisplayPort source.

3.  SPECIFICATIONS



Signal Inputs/Output
Input Video Signal	5 Volts p-p (TTL)
MaximumSingle Link Range	1920x1080P
Output Video	DVI
Input/Output Connector	Input: Mini DisplayPort Male 20pin Output: DVI Female (24+5)
Operating Frequency
VerticalFrequency Range	50/60Hz
Video Amplifier Bandwidth	2.25Gbps/225MHz
Resolutions(HDTV)
Interlaced(50&60Hz)	480i,576i,1080i
Progressive(50&60Hz)	480p,576p,720p,1080p
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	No external power needed
Power consumption (Max)	3W
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter
User Manual


Note: Specifications are subject to change without notice.
