HDMI Bidirectional switch
P/N :HBS-2

Description:

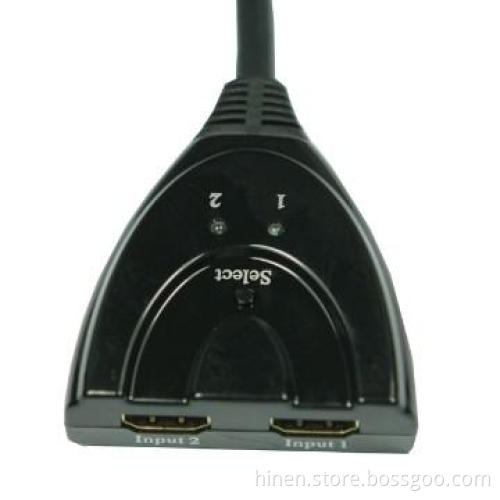

 This is a kind of high performance HDMI Switch. It can switch either of two sources to one display or switch one source to either of two displays. Press the switch button to select channel 1 or channel 2. With a piece fixed HDMI cable (pigtail) this converter not only reduces cost but also save time for customers.
This kind of HDMI Switcher routes high definition video (in multiple resolutions up to 1080p) and digital audio from the sources to display units.

Feasures:
This HDMI Switcher has many features that enable it to perform in a superior manner. Among those features you will find:



• HDMI bidirectional switch, it can switch either of two sources to one display or switch one source to either of two displays
• Support highest video resolution 1080p
• Supports 250MHz/2.5Gbps per channel (7.5Gbps all channels) bandwidth
• Supports 12bit per channel (36bit all channels) deep color
• HDCP pass-through
• Support uncompressed audio such as LPCM
• Support compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
• Support 3D all format, including , , bandwidth up to 250MHz.

Specifications


Signal Inputs/Output
Input DDC Signal	5 volts p-p (TTL)
MaximumSingle Link Range	1920X1080p
Output Video	HDMI
Operating Frequency
VerticalFrequency Range	50/60Hz
Video Amplifier Bandwidth	2.5Gbps/250MHz
Resolutions(HDTV)
Interlaced(50&60Hz)	480i,576i,1080i
Progressive(50&60Hz)	480p,576p,720p,1080p
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	No power needed
Power consumption (Max)	5W
Regulatory Approvals
Converter Unit	FCC,CE,UL
Accessories Adapter
User Manual

Note: Specifications are subject to change without notice.
