2ports DVI Amplifier Switcher

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Input DDC Signal	5 volts p-p (TTL)
Maximum Single Link Range	1920X1080p
Output Video	DVI
Size(L-W-H)	155x70x23mm
Weight(Net)	265g
Resolution Rratio	1080p
Application	Other

Detail Description

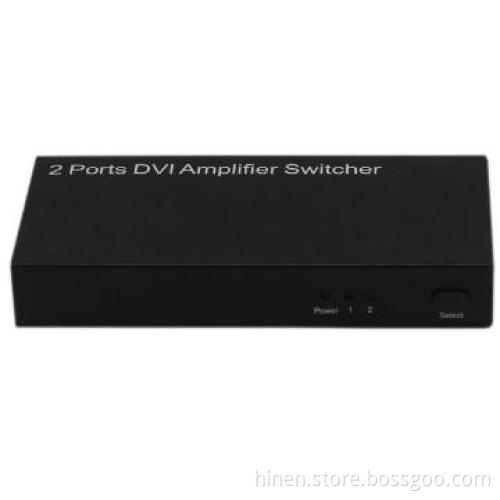

2 Ports DVI Amplifier Switcher

1.0 Introduction

This is a kind of high performance DVI Amplifier Switcher. This kind DVI Amplifier Switcher not only has the key-press-switching function, but also has intelligent function.
This kind of DVI Amplifier Switcher routes high definition video (in multiple resolutions up to 1080p) and digital audio from any one of the several sources to display units. All inputs accommodate the connections of the high definition video sources simultaneously, compatible well for HD-DVD,, PS3, Xbox360 etc. The output sends the high definition audio/video signals to a high definition display.

1.1 Intelligent function

1) Once the source device is turned on or plugged in (should stay power-on mode), the switcher will automatically select this source.
2) Once the source device is turned off or plugged out, the switcher will automatically select the next power-on source depending on the sequence automatically
Note:
1) When the source devices are on the stand-by mode, its power supply should be turned off, otherwise this switcher can not meet intelligent function.
2) When plugged in or out, this switcher is completely intelligent.

1.2 Features

This DVI Amplifier Switcher has many features that enable it to perform in a superior manner. Among those features you will find:
l Multifunctional on switching : intelligent or mechanical
l Support highest video resolution 1080p.
l Support 250MHz/2.5Gbps per channel (7.5Gbps all channel) bandwidth.
l Support 12bit per channel (36bit all channel) deep color.
l HDCP pass-through.
l Support uncompressed audio such as LPCM.
l Support compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby True HD）.

2.0 SPECIFICATIONS

Signal Inputs/Output
Input DDC Signal	5 volts p-p (TTL)
Maximum Single Link Range	1920X1080p
Output Video	DVI
Operating Frequency
Vertical Frequency Range	50/60Hz
Video Amplifier Bandwidth	2.5Gbps/250MHz
Resolutions(HDTV)
Interlaced(50&60Hz)	480i,576i,1080i
Progressive(50&60Hz)	480p,576p,720p,1080p
Mechanical
Size(L-W-H)	155x70x23mm
Weight(Net)	265g
Warranty
Limited Warranty	1 Year
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	No power needed for standard product
Power consumption (Max)	5W
Accessories Adapter
User Manual	English Version

Note: Specifications are subject to change without notice.

3.0 Package Contents

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

l Main unit.
l User\'s Manual.

Additional Information

Payment Terms	T/T
Minimum Order	100
Lead Time / Delivery Time	30 Day(s)
Sample Available	YES
Delivery Details	Negotiable
FOB Port	Shenzhen
Loading Info	Negotiable
Packing Info	Negotiable
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
