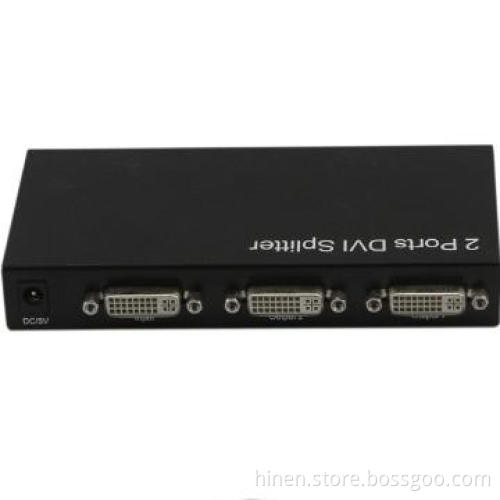

2 ports DVI splitter has the ability of buffering and amplifying

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Input DDC Signal	5 volts p-p (TTL)
Maximum Single Link Range	1920X1080p
Output Video	DVI
Vertical Frequency Range	50/60Hz
Video Amplifier Bandwidth	2.25Gbps/225MHz
Resolution Ratio	1080p
Application	HDTV

Detail Description

1.0 Introduction

This product is a DVI splitter with two outputs. It distributes the input of the DVI signal into the two identical outputs simultaneously. This product has the ability of buffering and amplifying. Each amplifier splitter’s output can achieve long distance transmission of DVI signal of more than 15 meters. When two or more products are cascaded, they can create a larger distribution and longer in length.
This DVI Splitter offers solutions for HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

1.1 Features

This DVI Splitter has many features that enable it to perform in a superior manner. Among those features you will find:
l Easy to Use: Install in seconds, no need of setting.
l Cascaded: Large distribution achieved by cascading the DVI Splitter.
l Supports highest video resolution 1080p.
l Supports 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
l Supports 12bit per channel (36bit all channel) deep color.
l Supports HDCP.
l Supports uncompressed audio such as LPCM
l Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby True HD）

2.0 SPECIFICATIONS

Signal Inputs/Output
Input DDC Signal	5 volts p-p (TTL)
Maximum Single Link Range	1920X1080p
Output Video	DVI
Operating Frequency
Vertical Frequency Range	50/60Hz
Video Amplifier Bandwidth	2.25Gbps/225MHz
Resolutions(HDTV)
Interlaced(50&60Hz)	480i,576i,1080i
Progressive(50&60Hz)	480p,576p,720p,1080p
Mechanical
Size(L-W-H)	155x70x23mm
Weight(Net)	265g
Warranty
Limited Warranty	1 Year
Environmental
Operating Temperature	0℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@ 2A
Power consumption (Max)	8W
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter
AC Power Adapter	US standard, UK standard and so on
User Manual	English Version

Additional Information

Payment Terms	T/T
Minimum Order	100
Lead Time / Delivery Time	30 Day(s)
Sample Available	YES
Delivery Details	Negotiable
FOB Port	Shenzhen
Loading Info	Negotiable
Packing Info	Negotiable
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
