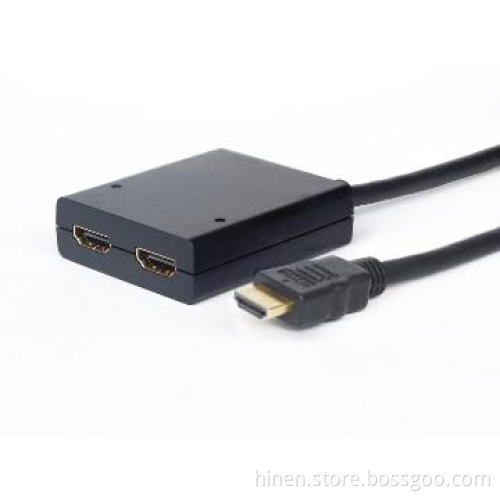

HDMI Splitter 1x2 pigtail type

HDMI Splitter 1x2 pigtail type
1.  Introduction

This HDMI Amplifier Splitter is an HDMI splitter with two outputs. It distributes the input of the HDMI signal into the two identical outputs simultaneously. It adopted pigtail type design to reduce cost and provide more convenience for customers.
This HDMI Amplifier Splitter offers solutions for HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.


2.  Features

This HDMI Splitter has many features that enable it to perform in a superior manner. Among those features you will find:

• Easy to Use: Install in seconds, no need of setting.
• Supports highest video resolution 1080p.
• Supports 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
• Supports 12bit per channel (36bit all channel) deep color.
• Supports HDCP.
• Supports uncompressed audio such as LPCM
• Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby  True HD）
• Support 3D all format, including 1080p@23.98/24Hz, 720p@59.94/60Hz/50Hz, bandwidth up to 225MHz.


3. SPECIFICATIONS

Signal Inputs/Output
Input DDC Signal	5 volts p-p (TTL)
MaximumSingle Link Range	1920X1080p
Output Video	HDMI
Operating Frequency
VerticalFrequency Range	50/60Hz
Video Amplifier Bandwidth	2.25Gbps/225MHz
Resolutions(HDTV)
Interlaced(50&60Hz)	480i,576i,1080i
Progressive(50&60Hz)	480p,576p,720p,1080p
Mechanical
Size(L-W-H)	63×54×18mm
Weight(Net)
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0℃to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@ 2A
Power consumption (Max)	8W
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter
AC Power Adapter	USstandard, UK standard and so on
User Manual



Note: Specifications are subject to change without notice.
