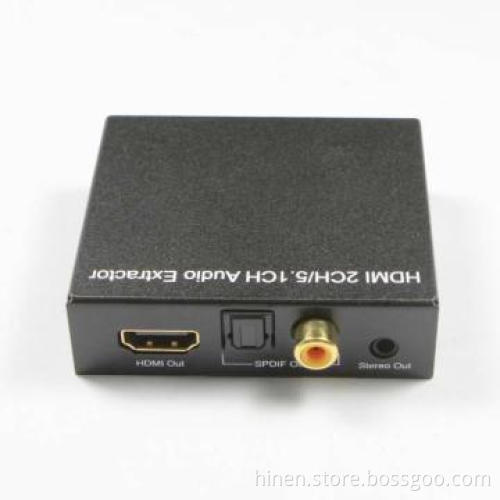

HDMI 2CH/5.1CH Audio Extractor

HDMI 2CH/5.1CH Audio Extractor
1.Introduction

It is known that the most benefit of the HDMI is to integrate the audio and video signals together. This integration makes all of us enjoy the high quality of the audio and video effect. Awfully the bad effect of the HDTV audio deprives the basic right of the enthusiasts. Fortunately, we develop this new product eventually, not only to meet the ideal image of the HDTV but also to meet the need of the enthusiasts’ requirement for audio. Because it can extract the audio signal from the HDMI interface, then transmit audio to the Amplifier Receiver by SPDIF or Stereo.


2.  Features

This HDMI Audio Splitter has many features that enable it to perform in a superior manner. Among those features you will find:

• Supports audio output simultaneously: SPDIFand Stereo.
• Supports 2.0CH/5.1CH audio switch.
• Supports the highest video resolution to 1080p.
• Supports 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
• Supports 12bit per channel (36bit all channel) deep color.
• Supports HDCP.
• Supports uncompressed audio such as LPCM.
• Supports compressed audio such as DTS Digital, Dolby Digital.
• Support 3D all format, including 1080p@23.98/24Hz, 720p@59.94/60Hz/50Hz, bandwidth up to 225MHz.

3. SPECIFICATIONS




Inputs/Output Connector	Â
Input Connector	HDMI Female
Output Connector	HDMI Female, Toslink,Coaxial, 3.5mmStereo
Operating Frequency	Â
VerticalFrequency Range	50/60Hz
Video Amplifier Bandwidth	2.25Gbps/225MHz
Resolutions(HDTV)	Â
Interlaced(50&60Hz)	480i,576i,1080i
Progressive(50&60Hz)	480p,576p,720p,1080p
Warranty	Â
Limited Warranty	1 Year Parts and Labor
Environmental	Â
Operating Temperature	0℃to +70℃
Operating Humidity	10% to 80 % RH (no condensation)
Storage Temperature	-10℃to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement	Â
External Power Supply	5V DC @2A
Power Consumption (max)	2.5W
Regulatory Approvals	Â
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter	Â
AC Power Adapter	USstandard, UK standard and so on
User Manual	1 x English


Note: Specifications are subject to change without notice. Weight and dimensions are approximate.
