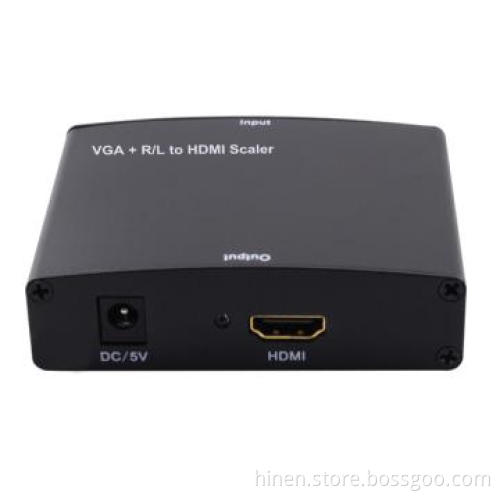

VGA+R/L to HDMI Scaler Converter
  • VGA+R/L to HDMI Scaler Converter
VGA+R/L to HDMI Scaler Converter

VGA+R/L to HDMI Scaler Converter

Get Latest Price
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

color black
Output Frequency 1080p(50Hz/60Hz)
Converting Type AV(CVBS)
Video Starnard Other

Detail Description

1.  FEATURES
  • Easy to Use: Install in seconds, no need of setting.
  • Convert computer’s VGA video and R/L audio into HDMI signal.
  • Supportsall kinds of common resolution of computer’s VGA port.
  • Supports HDMI resolution to fixed 1280x720p
  • Supports HDMI 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth.
  • Supports HDMI 8bit per channel (24bit all channel) deep color.

2. SPECIFICATIONS
Signal Inputs/Output
Input Signal VGA, R/L
Output Video signal HDMI 720p
VGA Resolution 640x480    60/72/75/85Hz
800x600    60/72/75/85Hz
1024x768   60/70/75/85Hz
1280x720   60Hz
1280x768   60/70/75/85Hz
1280x800   60/70/75Hz
1280x960   60Hz
1280x1024  60Hz
1440x900   60/75/85Hz
1920x1080  60Hz
1920x1200  60Hz
1920x1440  60Hz
Note:Maybe several resolutions are limited on few displays
Operating Frequency
VerticalFrequency Range 50/60Hz
Video Amplifier Bandwidth 1.65Gpbs/165MHz
Mechanical
Size(W-H-D) 88mmW x 25.5mmH x 68mmD
Weight(Net) 0.68kgs
Warranty
Limited Warranty 1 Year Parts and Labor
Environmental
Operating Temperature 0 ℃to +70℃
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10℃to +80℃
Storage Humidity 5% to 95 % RH (no condensation)
Power Requirement
External Power Supply 5V DC@2A
Power consumption (Max) 4W
Regulatory Approvals
Converter Unit FCC,CE,
Power Supply CE,FCC
Accessories Adapter
AC Power Adapter USstandard, UK standard and so on
User Manual

Additional Information

Payment Terms T/T
Minimum Order 100
Lead Time / Delivery Time 10 Day(s)
Sample Available YES
Delivery Details negotiable
FOB Port Hong Kong,Shenzhen
Loading Info negotiable
Packing Info negotiable
Target Market(s) Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
