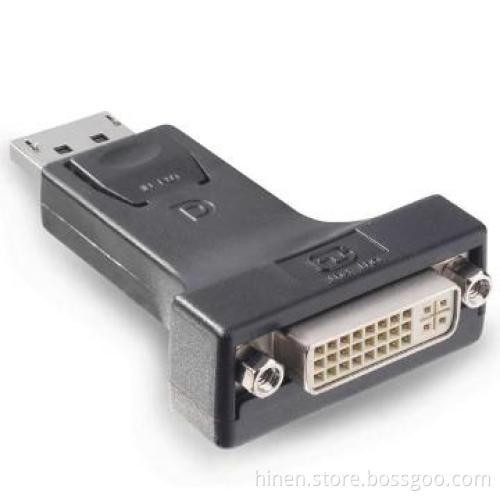

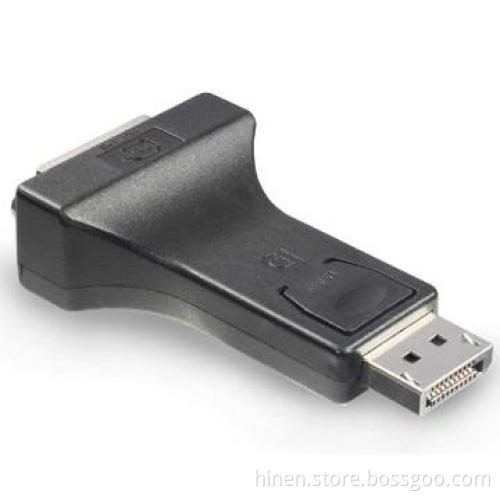

DP to DVI Adapter Connector DisplayPort to DVI Converter

DP to DVI Adapter Connector DisplayPort to DVI Converter

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

color	black
Connector	DP to DVI
Output Type	DC
Connect Type	Other
Usage	Electronic Product
Zone Of Application	European Union

Detail Description

DisplayPort to DVI Converter

DEAR CUSTOMER

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

1.0 Introduction

This is a DisplayPort to DVI signal format converter for interfacing next generation DisplayPort based PC and notebook computers with conventional DVI displays, such as CRT, LCD monitors, and projectors. DisplayPort offers a unified, scalable, and cost effective interface for embedded and external display applications. As desktop and notebook PCs are increasingly transitioning from conventional analog type interfaces to DisplayPort, the converter facilitates the transition by offering seamless connectivity between new DisplayPort PC and the installed base DVI monitors and projectors.
It offers solutions for digital entertainment center, projector factory, noisy space and security concerns, conference room presentation, school and corporate training environments.

1.1Features

l Support DisplayPort 1.1 input and DVI output.
l Support DVI highest video resolution 1080p.
l Support DVI 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
l Support DVI 12bit per channel (36bit all channel) deep color.
l Powered from DisplayPort source.

2.0 SPECIFICATIONS

Signal Inputs/Output
Input Video Signal	5 Volts p-p (TTL)
Maximum Single Link Range	1920x1080P
Output Video	DVI
Input/Output Connector	Input: DisplayPort Male 20pin Output: DVI Female (24+5)
Operating Frequency
Vertical Frequency Range	50/60Hz
Video Amplifier Bandwidth	2.25Gbps/225MHz
Resolutions(HDTV)
Interlaced(50&60Hz)	480i,576i,1080i
Progressive(50&60Hz)	480p,576p,720p,1080p
Mechanical
Weight(Net)	22g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	No external power needed
Power consumption (Max)	3W
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter
User Manual

Note: Specifications are subject to change without notice.

Additional Information

Payment Terms	T/T
Minimum Order	200
Lead Time / Delivery Time	30 Day(s)
Sample Available	NO
Delivery Details	Negotiable
FOB Port	Shenzhen
Loading Info	Negotiable
Packing Info	Negotiable
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
