Mini DP to HDMI Adapter Mini DisplayPort to HDMI/DVI/VGA Adapter

Mini DP to HDMI Adapter Mini DisplayPort to HDMI/DVI/VGA Adapter

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Color	white
Input Signal	Mini DisplayPort 1.1a
Limited Warranty	1 Year
Connect Type	Plug In
Output Type	DC
Zone Of Application	Other
Usage	Electronic Product, Game Player, Mobile Phone, Other, Phone

Detail Description

Mini DP to HDMI Adapter Mini DisplayPort to HDMI/DVI/VGA Adapter
Introduction

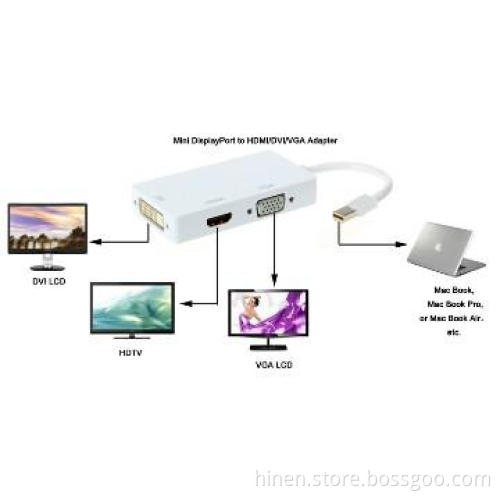

The adapter seamlessly connect Mac Book, Mac Book Pro, or Mac Book Air with a Mini DisplayPort to high definition displays with HDMI, DVI or VGA input port. Using this adapter, you need not buy 3 separate Mini DisplayPort adapters. It not only saves your money but also solves the trouble of plug in and out, because there is only one Mini Display port in Mac notebooks.
It not only has an elegant appearance with the white color but also brings much convenience with its small size.
Note: You can only plug one port among this three output ports at one time.

Features

l Support Mini DisplayPort 1.1a Dual-mode input.
l The HDMI can support audio output for iMac (Late 2009) and MacBook Pro (Mid 2010)
l Support HDMI/DVI/VGA output with the max resolution of 1920x1080p@60Hz, 225MHz/2.25Gbps per channel (6.75Gbps all channel), 12bit per channel (36bit all channel) deep color.
l Automatic detect the display by plugging and unplugging it.
l Powered from Mini DisplayPort source.

SPECIFICATIONS

Signal Inputs/Output
Input Signal	Mini DisplayPort 1.1a
Output Video	HDMI/DVI/VGA
Input/Output Connector	Input: Mini DisplayPort Male 20pin Output: HDMI Female Type A 19pin DVI Female (24+1) VGA Female 15Pin
Operating Frequency
Vertical Frequency Range	50/60Hz
Video Amplifier Bandwidth	2.25Gbps/225MHz
Resolutions
HDMI/DVI/VGA	480i/480p,576p,720p,1080i/1080p
Warranty
Limited Warranty	1 Year
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	No external power needed
Power consumption (Max)	700mW
Accessories Adapter
User Manual

Additional Information

Payment Terms	T/T
Minimum Order	100
Lead Time / Delivery Time	30 Day(s)
Sample Available	YES
Delivery Details	negotiable
FOB Port	Shenzhen
Loading Info	negotiable
Packing Info	negotiable
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
