S-BODY 2014 new e cigarette EZDNA battery original Evolv DNA 30 chip

S-BODY 2014 new e cigarette EZDNA battery original Evolv DNA 30 chip

1. Specifications of electronic cigarette battery EZDNA-1

2. Direction

Normal Operation:

1. Watt setting: when smoking can show the watt,from 7w-20w  choose.

2. Battery indicator: show the  battery usage when smoking.like moble phone.

3. Volts display: output voltage  supplied to the atomizer. 4v-8.3v to choose.

4. Ohms display: The resistance of the atomizer attached to the device. This is measured only when the unit is supplying power to the atomizer.

5. Other modes:

Locked mode: . 5 Clicks On/Off

Stealth mode: While locked, pressing the fire and down buttons simultaneously for five seconds will switch to stealth mode. In this mode the display is off. It will still show error messages and the “Locked, Click 5X” advisory. To switch back to normal display mode,from locked mode hold down the fire and down buttons simultaneously for 5 seconds.

Right Mode and Left Mode: While locked, holding the fire and up buttons simultaneously for 5 seconds flips the display. This allows for maximum flexibility in designing the mod, as well as accommodating left handed vapers. This setting is stored to internal flash memory, and remains if power is removed. Please note that if using a potentiometer instead of a button, this option is not available.

Power Locked mode: Holding down both the up and down buttons for two seconds will place the device in Power Locked mode. In this mode, the mod will operate normally, but you will not be able to change the power setting. This mode prevents accidental power level changes due to the buttons being pressed while in a pocket. To exit Power Locked mode, hold the up and down buttons for two seconds.

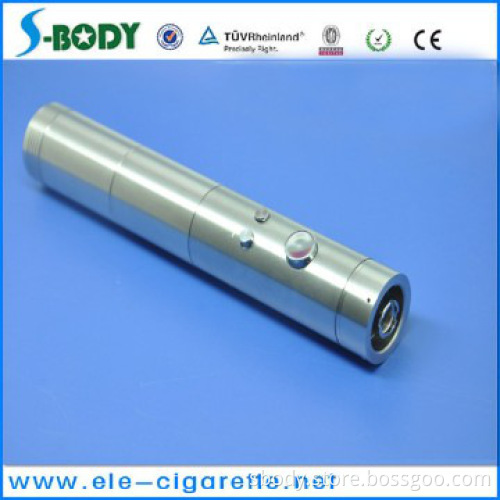

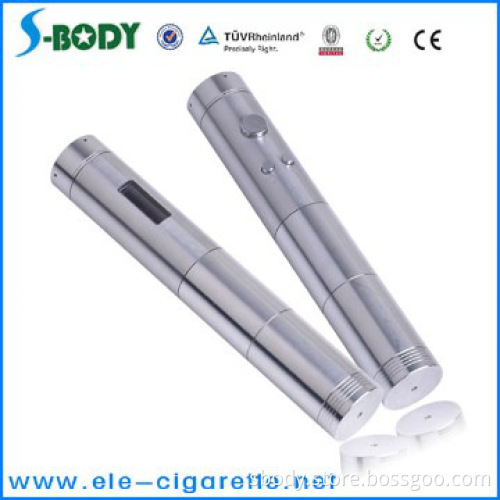

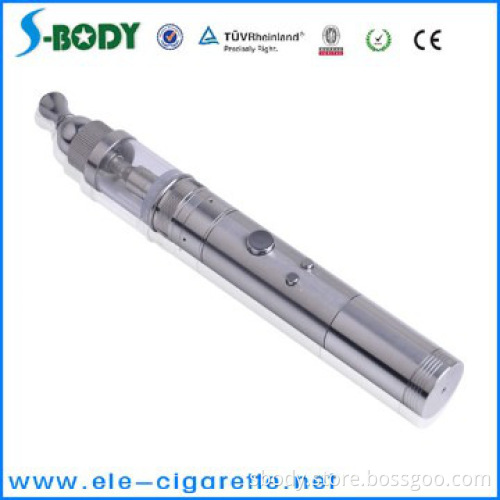

3. Please see more photos of stainless steel EZDNA30-1

One EZDNA battery comes with 1pc EZDNA tube, 1pc 2000mAh 18650 li-battery and a gift box.

There is a EZDNA-2 also, please see picture

4. Notice

1.     Do not counter-loading “+” and “-” pole of lithium battery. When counter-loading, lithium battery gets hot and discharges smog immediately. Please promptly take battery out.

2.     Please use 18650 lithium battery which we specially equip with. Some 18650 possibly can not work when wattage up to 15W or more high. In this case, screen shows “WEAK BATTERY” or electricity icon becomes empty in one to ten puffs.

3.     Please tighten battery cover up after loading lithium battery. Otherwise, the mod don’t work.

4.     If you don’t use this mod for a long time—over two months, please remove lithium battery to prevent over-discharge. Meanwhile, please charge battery.
