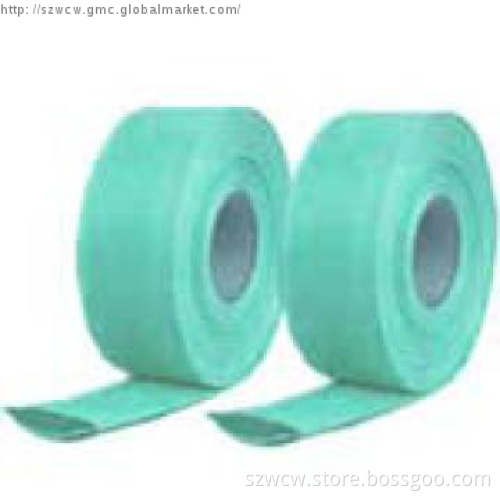

3.0MM heat shrinkable sleeve
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Type | Heat Shrinkable |
|---|---|
| Material | PE |
Detail Description
Adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of
electrical applications, including automotive and marine wire harness, wire splices, breakouts, and connector-to-cable transitions.
Technical Data:
Test Item |
Test Method |
Test Result |
Tensile Strength(Mpa) |
ASTM D2671 |
≥10.4 |
Elongation% |
ASTM D2671 |
≥300 |
Tensile Strength afterAging (Mpa) |
UL 224 158×168hr |
≥7.3 |
Elongation after Aging% |
UL 224 158°C×168hr |
≥200 |
Dielectric Strength |
IEC 243 |
≥ 15 |
Volume Resistance(Ω.cm) |
ASTM D876 |
≥ 1014Ω.cm |
Hot Melting Adhesive Property
Test Item |
Test Method |
Test Result |
Water absorption ratio: |
ASTM-D570 |
<0.2% |
Softing point |
ASTM-E8 |
95°C |
Strength of pearing(PE) |
ASTM-D1000 |
120N/25m |
Strength of pearing(AL) |
ASTM-D1000 |
80N/25m |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 1000M |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | YES |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
