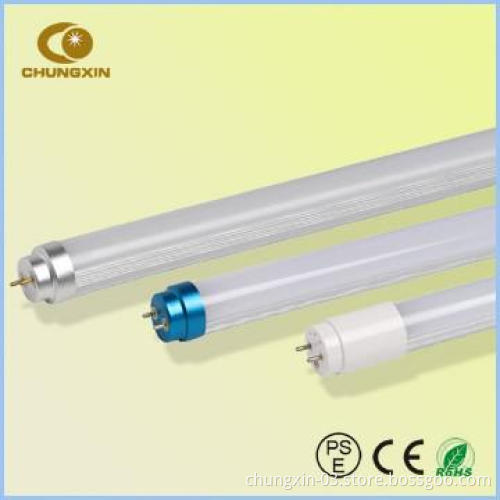

2ft 3ft 4ft SMD T10 led tube lights 1.5m 25W
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Available size | 600mm-2400mm |
|---|---|
| led type | SMD3528, SMD3014 |
| Material | Clear or frosted PC Cover + Aluminium alloy shell |
| CCT | 2700-3500K,4000-4500K,5700-6500K |
| led chip | Epistar,Cree, LumenMax,Samsung |
| Life | 50000 |
| Package | Yes |
| Tube Diameter | T8 |
| Color Tones | Warm Color |
| Length | 120cm |
| Lamp Base | G13 |
| Voltage | 90-260V |
| Power | 18w |
| Illuminant | SMD |
| Light Source Chip | CREE |
Detail Description
T10 led fluorescent lights 1.5m 25W
Aluminum heat sink, No UV, IR or RF interference, Patented heat sink and optical diffuser, longer life than incandescent & fluorescent tube. No ballast required, universal voltage and constant current design, solid state, high shock & vibration resistant, Mercury free, 70%+savings in energy consumption, quiet, no noise, no flickering.The products are in accordance with CE, RoHS, UL and FCC testing standards.
| Material:Aluminum + PC cover | led quantity:324pcs SMD3528 |
Light transmissivity: ≥92% |
Lifespan:≥50000H |
Rated Power: 25W |
Viewing angle:140° |
| Power consumption:26W±1W | luminous:2000±100Lm |
Input Voltage:AC100V~240V |
Efficiency:88% |
Frequency:50/60Hz |
CRI:>75Ra |
Power Factor:0.96+0.03 |
CTT:3000K/4000K/5000K/6000K |
Working temp:-20°C~45°C |
Size:1198mm (L)×Ф30mm |
Package |
N.W: 0.490kgs G.W.: 0.510kgs |
Carton size: |
1547*205*170mm Pcs/ctn: 20pcs/ctn Total G.W.:14.8kgs/ctn 20FCL: 10000pcs |
Product Features:
1. Low Lumen Depreciation.
2. Installed directly with inductive ballast.
3. Life: about 50.000 hours.
4. Save more than 70% energy.
5. Brighter than traditional fluorescent lamps.
Electrical Parameters:
Input Voltage: 85-265VAC
Frequency; 50-60Hz
Power Supply Efficiency: 90%
Power factor: 0.95
Optical Parameters:
Color-Rendering Index: 75-80
Light Efficiency: 100Lm/w
Color Temperature: 2700-3500K/4000-4500K/5500-6500K
Other Parameters:
Product Patents: Yes
Operating Temperature : -20---50oC
Appearance: Frosted/Striped/Transparent
Main Material: Aluminum inner pipe + PC Cover
IP Rating: IP54
Life Span: 50,000 hours
Certificates:
CE(LVD), CE(EMC), ROHS, FCC,PSE,TUV
Applications:
Houses, offices, exhibitions, meeting rooms, hotels, restaurants, schools, factories, hospitals, workshops, storages, roads, streets, etc.
Caution:
>led tube and its all fittings cannot withstand any mechanical pressure.
>Any question about the installation of our led tubes, please ask for professional guide.
>If the aluminum pipe is damaged or deformed, please stop using the led tube to avoid dangers.
>Before installation, please switch off the electricity, and ensure to install our led tube normally.
>Please install or place the led tubes to avoid sunlight and high temperature.
>It is only used indoors.
Remarks:
>Detecting distance: 5m to 8m , Lighting time: 30s to 60s
>MOQ:100PCS , LED Chips:3014 or 3528 is Ok.
>Delivery Day: 7 -15days (Based on quantity)
>Price Term: Exw Shenzhen(Over 500pcs, FOB Shenzhen)
>Payment:T/T or West Union,T/T advanced.50% Deposit, Balance Before shipment
>Warranty: 3 Years
>Packing: white box packing, or complying to your details requirements.
Other Lamp Holer Is Ok:
Additional Information
| Payment Terms | T/T, Others |
|---|---|
| Minimum Order | 10PCS |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | 2-5 working days (5000pcs in stock) |
| FOB Port | Shenzhen |
| Loading Info | By sea, by air |
| Packing Info | 20pcs t8 / t10 led tubes in a carton |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Japan & Korea, Latin America, Oceania, Western & Southern Europe |
