factory New Design!!Easy Driver replaceable 1200m 18W t8 led tube
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Available size | 600mm-2400mm |
|---|---|
| led type | SMD3528, SMD3014 |
| Material | Clear or frosted PC Cover + Aluminium alloy shell |
| CCT | 2700-3500K,4000-4500K,5700-6500K |
| led chip | Epistar,Cree, LumenMax,Samsung |
| Life | 50000 |
| Package | Yes |
| Tube Diameter | T8 |
| Color Tones | Warm Color |
| Length | 120cm |
| Lamp Base | G13 |
| Voltage | 90-260V |
| Power | 18w |
| Illuminant | SMD |
| Light Source Chip | CREE |
Detail Description
60cm CE and Rohs Approval 9W LED T8 light.
1. Technical Parameter for 1200mm T8 led tube:
Model No |
CX-L09-ASW-1 |
CX-L18-ASW-1 |
CX-L25-ASW-1 |
Input voltage (V) |
85-265V |
85-265V |
85-265V |
Frequency (Hz) |
50-60Hz |
50-60Hz |
50-60Hz |
Input current (A) |
0.07A |
0.149A |
0.205A |
Input power(W) |
9W |
18W |
25W |
Efficiency (Lm/W) |
100±10% (lm/w) |
100±10% (lm/w) |
100±10% (lm/w) |
Lumen(lm) |
750lm~1010lm |
1620lm~1925lm |
2200lm~2630lm |
Beam angle |
120° |
120° |
120° |
Color temp (K) |
2700~6500K |
2700~6500K |
2700~6500K |
Dimension |
L589mm×Φ30mm |
L1198mm×Φ30mm |
L1498mm×Φ30mm |
Lamp cap |
G13 |
G13 |
G13 |
LED Qty |
114pcs 3528 |
240pcs 3528 |
300pcs 3528 |
Working tempt |
-20-50°C |
-20-50°C |
-20-50°C |
Storage tempt |
-20-40°C |
-20-40°C |
-20-40°C |
a. Input Voltage: AC85-265V
b. Color temperature:
Warm White: 2800-3500K
Pure White: 4000-4500K
Cool White: 5500-7000K
c. Power factor> 0.95, CRI> 75
2. Why choose us?
a.The LED power supply is UL approved.
b. CE, RoHS and PSE approval
c. Warranty: 3 years.
d. Over 50000H life-span
e. OEM highly welcome
f.....

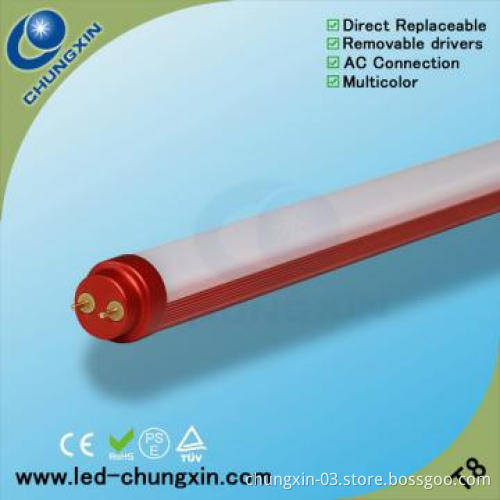

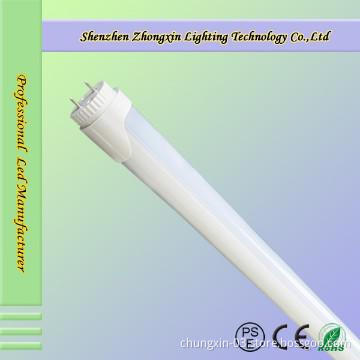

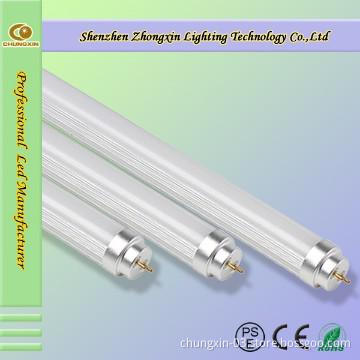

3. Product Pictures:

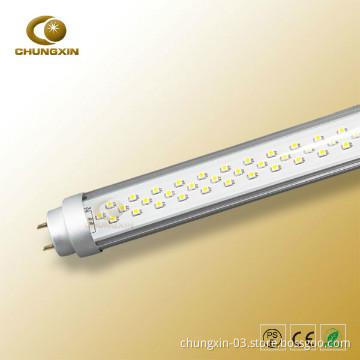

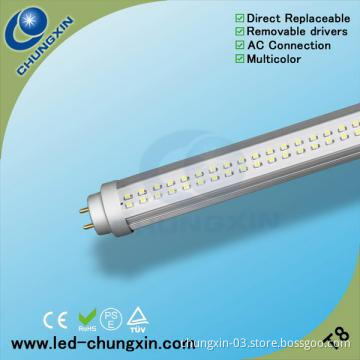

Transparent PC cover:

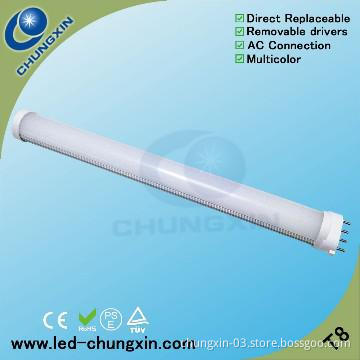

Frosted PC cocer:
Stripted PC Cover:
4.Aging test before shipment:
5. Packing Pictures:
6. Test report for 16W T8 LED tube:
7. CE (LVD & EMC) and ROHS:
9. Application:
a. Living room, bedroom.
b. School, university, hospital, hotel.
c. Conference,meeting room, show room, showcase.
d. Factory,plant,warehouse, office.
e. Supermarket,department store.
f. Home lighting, commercial shop decorative lighting.
10. Payment Terms and Delivery:
a. Payment Terms: T/T, Western Union and Paypal etc.
b. Shiping way: For samples or small order, we advise the air express delivery, like DHL, UPS, Fedex etc; For tube order, we advise deliver the goods to you by air or by sea.
c. Delivery: 3-7 days for small order, 10-20 days for large order.
11. More about us:
Additional Information
| Payment Terms | T/T, Others |
|---|---|
| Minimum Order | 10PCS |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | 2-5 working days (5000pcs in stock) |
| FOB Port | Shenzhen |
| Loading Info | By sea, by air |
| Packing Info | 20pcs t8 / t10 led tubes in a carton |
| Target Market(s) | Africa(except Middle East), Japan & Korea, Latin America, Oceania, Central & Southern Asia, Western & Southern Europe |
