Best Home Security System Video Door Phone Photo and Video Record

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Color	Orange and black
LCD Mornitor	3.5 inch
Gross Weight	1.5KG
Resolution	300,000 pixels
water-proof	IP55
Wiring	Other
Power Supply	Other
Warranty	1 Year

Detail Description

Application For Villas And Private Houses

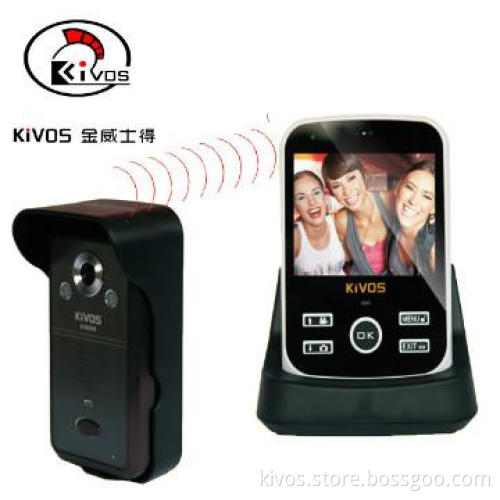

Brief Introduction For KDB300 Wireless Video Door Phone

KDB300 wireless video door phone is a 2.4G wireless high-tech household intelligent product integrating doorbell, photo-taking, video-recording, intercom, monitor and unlocking functions into one. Adopting the latest energy saving technology, its stable performance and fashionable appearance design make it the first choice of your high-quality intelligent life.

Structure For KDB300 Wireless Video Door Phone

Features For KDB300 Wireless Video Door Phone

1. Wireless two way video intercom.

2. Pictures and video recording manually and automatically.

3. For villa, house, apartment.

4. 3.5inch LCD screen

5. 120 degree wide angle lens

6. 1 outdoor camera, 3 indoor monitors Max.

7. Nokia chargeable lithium battery supported, adaptor equipped.

8. IP55 waterproof

9. Door release

10. 2.4G public frequency for the users from all over the world.

11. Patented shape design, unique supplier (manufacturer/factory) and unique products for you, no copy.

12. CE, Fcc and RoHS approved.

Different Colors Of Outdoor Camera For KDB300 Wireless Video Door Phone

Accessories For KDB300 Wireless Video Door Phone

Package For KDB300 Wireless Video Door Phone

Simple Installation Instruciton

Real Photos For KDB300 Wireless Video Door Phone

Specification For KDB300 Wireless Video Door Phone

Adopt 2.4G ISM digital public frequency brand: 2402~2483.5MHz.
Transmitting power 16~20dBm, receiving sensitivity: 90~100dBm.
Intercom speech pattern.
Image data and voice data synchronous transmission.
Outdoor machine adopts 300,000pixels camera, indoor machine adopts 3.5’’ TFT display screen to show vivid and clear images.
SD card for video and picture storage (TF card, auto circulation storage, Max: 4G supported).
Power supply: lithium battery 3.7V for indoor machine, USB interface for charge and downloading.
Chargeable lithium battery 3.7V for outdoor machine, adapter: 5V 1A.
Adopt AFH self-adaption frequency hopping technology, which allows the machine work well along with sharing 2.4G frequency band with WIFI and Bluetooth simultaneously.
Transmission distance reaches 300meters at an open space.
2 to 3 function(2 outdoor units and 3 handsets)could be achieved, handset could call to each other.
Outdoor machine adopts tamper alarm function.
Images adopts MJPEG compress mode, one-way wireless transmission could reach 12fps.
Transmission channel, synchronization channel and40Bits code generate at random.
Outdoor machine adopts night vision function (infrared lamp or LED flash) controlled by indoor machine.
Outdoor machine adopts unlocking door function,power for electric latch: 12V (User Supply).
CE/CCC/Fcc/R&NTTE/RoHS approved.

Parameters for KDB300 Wireless Video Door Phone

Outdoor unit	Power	Specific lithium battery BP-6M(1100mAh)
Consumption	400mA
Outline dimension	1347431mm
Weight	122g
Environmental condition	Temperature: -10°C~+50°C
Waterproof grade	IP55
Placement	Hang on outwall
Surface material	ABS & hardware accessories
Camera	300,000pixels
View angle	120° wide angle
Night vision pattern	2 leds or IR lamp
Working time	3hours continuously
Standby time	1000hours
Charge time	3hours
External power	DC5V 1A
Indoor monitor	Power	Specific lithium battery BP-6M(1100mAh)
Consumption	400mA
Outline dimension	1268420mm
Weight	110g
Environmental condition	Temperature: -0°C~+40°C
Placement	Hang on wall or table style
LCD size	3.5\" TFT color screen
Wireless communication mode	2.4GHz
Working time	2hours continuously
Standby time	100hours
Charge time	3hours
External power	DC5V 1A
Application distance	About 300m in open space

Exhibition pictures

Company Pictures

Additional Information

Payment Terms	L/C, T/T, D/A, D/P, Credit Card, Money Order, Paypal, Others
Minimum Order	10sets
Lead Time / Delivery Time	15 Day(s)
Sample Available	YES
Delivery Details	upon recieved your kind payment,
FOB Port	Hong Kong,Shenzhen
Loading Info	1.FOB Port: Shenzhen2.FOB Price Range:US$100-1503.Lead Time:3- 30 days
Packing Info	CTN: 24176(CM) Box - contain 24 sets size493636(CM) weight:13(KG)
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
