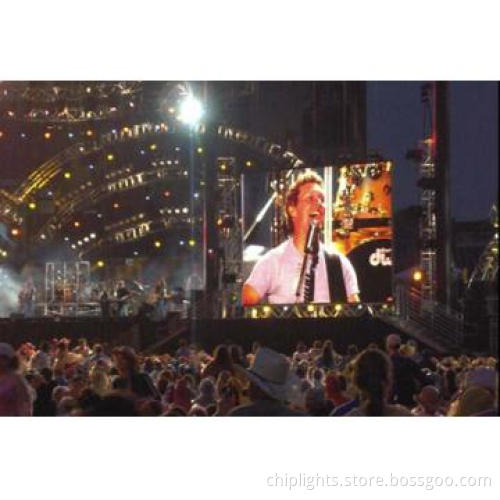

CHIPSHOW\'S LED stage full-color color display

Specification

Applications requirements: outdoor all -weather environment.Light-transperant, High refresh rate, high stability, no noise, Energy-saving, light weight.  easy to assemble and dismantle.

Characteristics：

 1, Ultra-thin design: very thin and light - low weight-bearing requirements. The cabinet using the latest design concept, make the it to reduce the weight mostly.  Ultra-thin design, the overall thickness of the box only 90mm, 50mm thinner than conventional cabinet which make the installation work more convenient.
2 Very flat uniformity.
3, Low wind-drag: with hole on the surface, wind drag will reduce to the lowest .
4, Energy saving: as the wind can pass through its bady, so don’t need cooling system.
5, Compatibility: it is compatible to all kinds of weather condition with its dust-proof, fully sealed design feature.
6, the Energy Saving: more than 40% energy saving over conventional display.

more:http://www.chipshow.com

Pixel pitch	10.41(mm)
Brightness	6000 nit
Panel dimensions (W×H×D)	500×500×60(mm)
Panel dimensions (W×H×D)	19.68×19.68×2.36 (Inch)
Panel material	Aluninum
Weight	5 (kg)
Weight	11.02(lbs)
Pixel configuration	SMD5050
Module dimensions (W×H)	250×250 (mm)
Module dimensions (W×H)	9.84×9.84(Inch)
Pixel matrix per panel	24×24pixels
Pixel density	9,216 pixels/sq.m.
Refresh rate	≥1200 Hz
Gray scale per color	32768 level
Colors	35.1 Trillion
Viewing angle (H/V)	120/110deg
IP rating (Front/Rear)	IP55/IP55
Power consumption (max/avg)	800/200 W/sq.m.
Input voltage (AC)	110V ～ 240V
Operating temperature	?20℃ ～+ 50℃
Operating humidity	10％ ～ 90％
Source compatibility (with video processor)	AV, S-Video, VGA, DVI, HDMI, SDI, DP
