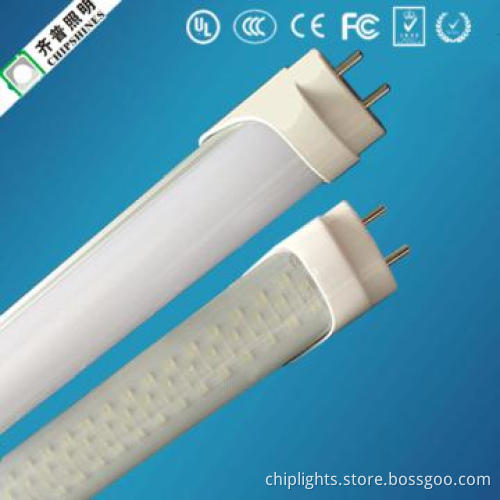

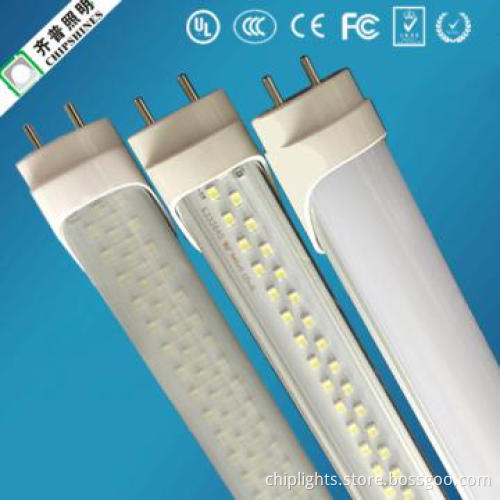

Energy saving light tubes,T8 LED Tube 12cm 16W

Product Name:1.2M LED tube with 3014, 180 degree beam angle, Patent product,220V.

   Actual lifespan of 50,000 hours, 3 year warranty
   Dimension:Dia 26*L1214mm
   LED Qty:288pcs SMD3014
   Power:16W
   Luminous Flux: 1600LM
   View Angle:180 Degree view angle
   Colour: Pure white/Daylight, Cool white, Warm white
   Tube Material:Aluminum Alloy and Frosted PC
   Anti-glare design
   PCB board: Aluminum PCB board
   Frequency:50-60HZ
   Power-supply efficiency:>90%
   Accuracy of constant current:3%
   Material: Optimum thermal management , Aluminum PCB board,Aluminum backbone with Transparent cover,High quality LED chips
   Operation Temperature: - 30 ° C ~ 45 ° C
   Storage Temperature:‐20° ~ C 60° C
   Working Humidity:< 95%
   Life time: 50K hours
   Standard:UL,CE, RoHS, FCC Approved
   Environment friendly
   Energy saving
   No UV, no infrared, no other Hazardous Substances
   No noise,no flicker, resistance from vibration

Product Description and Feature
1.Adopt high quality chips with have high lumen and almost zero brightness decay
2.Anti-glare design, 250 degree beam angle,the same lighting performance as the traditional fluorescent tube
3.Aluminum PCB board is good for heat dissipation
4. Aluminum backbone and milk PC cover
5.Strict quality controlling,lighting aging for 48 hours and complete inspection before shipping

Usage instruction:
1.Take out from package carefully;
2.Check if have any damage, don\'t try to use any damaged products;
3.Read the label parameter carefully before installation and make sure the voltage & current are correct;
4.Indoor use only;
5.Don\'t vibrate tube
6.Don\'t disassemble the tube if have no authorization;
7.Don\'t store tubes in humidity environment.

Installation instructions
1.Firstly please turn off the power before install the led tube.
2.Take down the tradition fluorescent tube ,Cut off or directly Take off the starter and ballast from the tradition fluorescent tube fixture.
3.Then, according below wiring diagram to connect the LED tube on the tradition fixture.
4.Make sure everythings are correctly, and than turn on the power, the led tube will light.

Application:
Office,Supermarket, School,Hospital,Lobby, Hall,Square, Parking and so on
