Recessed /mounted install 600x600mm Led panel light 03

Recessed /mounted install 600x600mm Led panel light

LED Panel light
Features:
Ø  Energy saving up to 50%.even lighting output.
Ø  Wide range of input voltage: AC 100~240V.
Ø  Instant start, no flicking, no humming.
Ø  New high efficiency constant current driver.
Ø  Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.
Ø  No RF interference.

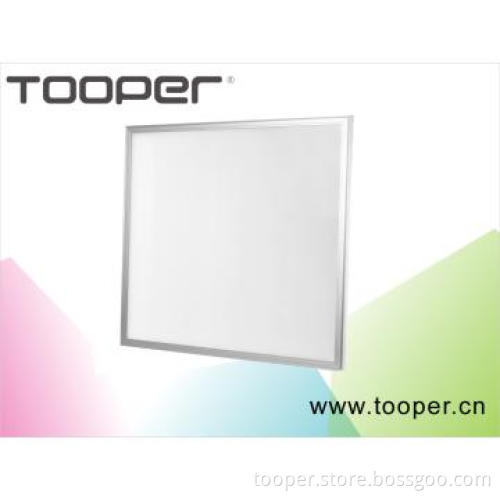

Photo:
LED panel light second generation product features

600X600 LED PANEL SPECIFICATIONS
NUMBER	ITEM	DESCRIPTION
1	Input voltage	AC 100~240V
2	Panel Input	DC 55~70V (700 mA)
3	Power consumption	36W
4	luminous flux	2500 lm(white) 2150lm(warm white)
5	Color	Warm white White
6	Color temperature	2500~4000k(Warm white) 4000~7000k(White)
7	Life time	>50,000 Hour
8	Operating temperature	-20ºC to + 50ºC
9	Storage temperature	-30ºC to + 60ºC
10	Luminosity	>852 Lux(1.2meter, White) >596 Lux(1.2meter, Warm white)
11	Certificates	CE . RoHS
12	Weight	3.8 KGS
13	Size	595X595X10.4 mm
14	Water proof	IP20




Part number	Color	Voltage	Current	Power	Luminous Flux
TOP-PA-6060-36W-N-W	White	DC 55~70V	700 mA	36 W	2500 lm
LD-PA-6060-36W-N-WW	Warm white	DC 55~70V	700 mA	36 W	2150lm

Light Distribution Graph:

Illumination Intensity Chart: ( White )


LED Lumen Attenuation:

Operating time(hours)	Lumen decrease (%)
5,000	2.3
10,000	5.4
20,000	11.5
50,000	25.2

Application:
