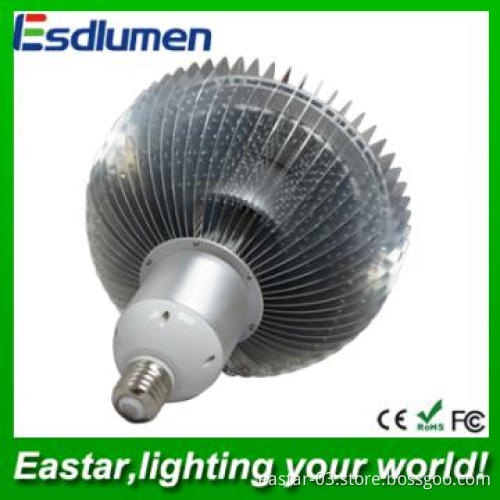

LED High Bay Lighting

LED High Bay Lighting
[Features]

• Energy saving, energy saving lamps than ordinary power saving 50%-70%.

• Environmental protection; Lead-free, mercury and other environmental harmful material, and also have no ultraviolet ray, infrared, harmful to human body health of radiation.

• Beautiful shape: high thermal conductivity fins aluminum shells the oxidation process, color and luster is light, spherical mask with pleasing appearance and shape.

• Long service life: life is the same type of traditional lights 5 to 8 times, save maintenance cost.

• The radiation capability good: high thermal conductivity aluminum shell fins good heat dissipation characteristics plus excellent thermal design will heat are effective, and extend the life of LED.

• Lamp holder type can change: lamp holder type can choose E39, E40 to adapt to different lamp holder, increased the range.

• Convenient installation: just like ordinary incandescent lamp bulb installed as twist in the corresponding lamp holder can.

• High safety: built-in isolation type power supply, effectively prevent to get an electric shock risk leakage.

• Easy maintenance: light source or the power supply damage, only need to change the corresponding element can complete maintenance continue to work properly.

• Protect vision: the glare structure design, reduce illume process not comfort, no flash, and effectively protect eyes.

• No electromagnetic interference: be other appliances and electromagnetic interference.

LED High Bay Lighting

[Technology parameters]

• Light source: 1 W encapsulation LED

• LED quantity:120PCS

• Interface type: E39 (E40) can be chosen

• Power types: built-in constant-current power supply
• Input voltage:AC90V-250V/50-60HZ

• Power:120W

• Power factor:≥0.85

• Color temperature: W-warm white (2700-3700 K), N-natural white (3700-5500 K): P-is white (5500-6500 K), C-cold white (7000-9000 K) can be chosen

• CRI: 70 frequencies

• Beam Angle: 120 °

• working temperature:-25 °C ~ 45 °C

• Protection rating: IP54

• Material: 1050 fins aluminum shell + PMMA mask.

• Life expectancy: > 30000 hours.

• working environment: indoor use, temperature range-25 °C ~ 45 °C, humidity range from 10% to 90%.

• Weight: product = 3772 g, product + packing box = 4265 g.

• Certification: CE, RoHS  FCC

[Product intensity of illumination figure]

[Product spectrum power energy distribution and color product figure]

Hangzhou star spectrum photoelectric SSP6612 LED light color the parameters of the comprehensive test system test, using different manufacturer, different types of LED lights bead, wave graph parameters will have difference (here for the positive white LED lamp bead test chart)

LED High Bay Lighting

[Application]
 Public places (market, hotel, school, station, warehouse, parking places such as the main illumination)

[The product shape dimension figure and real figure]
  The product shape dimension drawing

[The user installation and instructions]

Installation: hold light bulb metal outer shell part directly mounted on the corresponding bulb twist E39 or E40 lamp holder can. Can\'t hold mask can be part of the pack, otherwise damaged lamps and lanterns. As shown)

Instructions:

1. Installation and replace lamps need to completely shut off the power again after operation.

2. before installing needs confirmation whether the lamp installation and light bulb lamp holder supporting.

3. Avoid installation in high temperature, high humidity and close to the heat source place and heat steam, the place of corrosive gas, lest affect life span.
