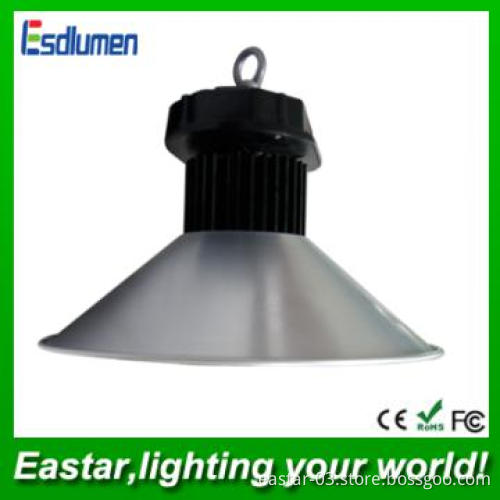

2012 shenzhen hot sale high quality LED Mining Light/led high bay

【Features】
•Energy saving, energy saving lamps than ordinary power saving 50%-70%.
•Environmental protection; Lead-free, mercury and other environmental harmful material, and also have no ultraviolet ray, infrared, harmful to human body health of radiation.
•Beautiful appearance: 6060 aluminum shell the oxidation process, color and luster is light, spherical mask with pleasing appearance and shape.
•Long service life: life is the same type of traditional lights 5 to 8 times, save maintenance cost.
•The radiation capability good: 6060 aluminum shell good heat dissipation characteristics plus excellent thermal design will heat are effective, and extend the life of LED.
•Convenient installation: hang clothes.
•High safety: built-in isolation type power supply, effectively prevent to get an electric shock risk leakage.
•Easy maintenance: light source or the power supply damage, only need to change the corresponding element can complete maintenance continue to work properly.
•Protect vision: the glare structure design, reduce illume process not comfort, no flash, and effectively protect eyes.
•No electromagnetic interference: be other appliances and electromagnetic interference.


【Parameters】
• Light source: Integrated packaging LED
• LED quantity：1PCS
• Power types: built-in constant-current power supply
• Input voltage: AC100V-240 V / 50-60 Hz
•Power factor：≥0.9
•Luminous flux

Power	40W	60W	80W	120W
Light sourcecategories	Epiatar	Epiatar	Epiatar	Epiatar
flux（lm）	2829	4242	5658	7224
Luminous efficiency（lm/w）	60	60	60	60

•Color temperature: W-warm white (2800-3300 K), N-natural white (4000-4500 K) : P-is white (5500-6500 K), C-cold white (7000-8000 K) can be chosen
•CRI: ≥70
•Beam Angle: 120 °
•Protection rating: IP54

•Material: 6063 aluminum alloy enclosure
•Life expectancy: > 30000 hours.
•working environment: indoor use, temperature range-25 ℃ ~ 45 ℃, humidity range from 10% to 90%.
•Certification: CE, RoHS

3、【Illuminance Graph】：



Power	40W	60W	80W	120W
Light sourcecategories	Epistar	Epistar	Epistar	Epistar
1 Mis in (a) intensity of illumination (Lx)	1012	1340	1862	2774
2 Mplace (b) intensity of illumination (Lx)	465	676	961	1325
3 Mplace (c) intensity of illumination (Lx)	354	552	562	816



4、【Application】：

•used in factories and enterprises, industrial and mining enterprises, petroleum, chemical industry, metallurgy, etc lighting

5、【Dimension】：

    The product shape dimension drawing

Size	￠510x360mm	￠510x370mm
Power	40W	60W





Size	￠510x380mm	￠510x410mm
Power	80W	120W


6、【Installation】：
  Installation: in the position of the need to install a suitable the size of the installation bolt hole, with a hook of explosion-proof column fixed, the mining of lamp directly link can be hung up,


Instructions:
1. Installation and replace lamps need to completely shut off the power again after operation.
2. Avoid installation in high temperature, high humidity and close to the heat source place and heat steam, the place of corrosive gas, lest affect life span.


7、【Package】： Power 40W 60W   Size Material pcs/carton Size Material pcs/carton Outer 270*270*300mm A=B 1 270*270*300mm A=B 1 Outer、 530*530*290mm A=B 1 530*530*290mm A=B 1
	Power	80W	120W
		Size	Material	pcs/carton	Size	Material	pcs/carton
	Outer	270*270*300mm	A=B	1	270*270*300mm	A=B	1
	Outer、	530*530*290mm	A=B	1	530*530*290mm	A=B	1
