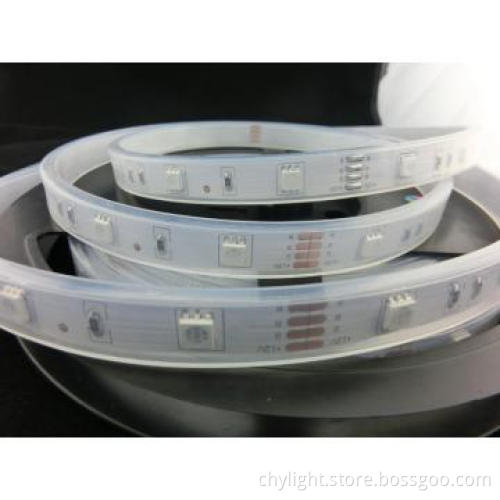

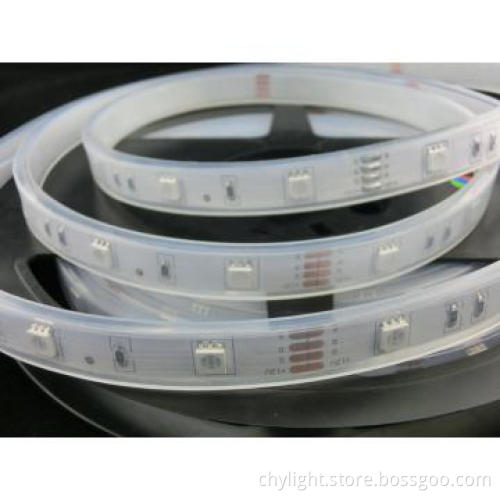

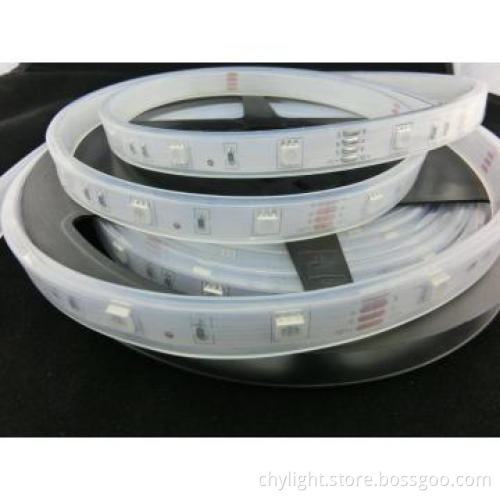

LED Strip Lighting SMD5050 30LEDs/Metre DC12V Full Color

Specification of LED Strip Lighting SMD5050 :



LED QTY	Voltage	Current	Power	LM/M	Angel	Color
30LED/M	DC12V/24V	0.6A	7.2W	360	120°	warm white
30LED/M	DC12V/24V	0.6A	7.2W	420	120°	white
30LED/M	DC12V/24V	0.6A	7.2W	285	120°	Green
30LED/M	DC12V/24V	0.6A	7.2W	72	120°	Blue
30LED/M	DC12V/24V	0.6A	7.2W	60	120°	Red
30LED/M	DC12V/24V	0.6A	7.2W	120	120°	Yellow
30LED/M	DC12V/24V	0.6A	7.2W		120°	RGB
60LED/M	DC12V/24V	1.2A	14.4W	720	120°	warm white
60LED/M	DC12V/24V	1.2A	14.4W	840	120°	white
60LED/M	DC12V/24V	1.2A	14.4W	570	120°	Green
60LED/M	DC12V/24V	1.2A	14.4W	144	120°	Blue
60LED/M	DC12V/24V	1.2A	14.4W	120	120°	Red
60LED/M	DC12V/24V	1.2A	14.4W	240	120°	Yellow
60LED/M	DC12V/24V	1.2A	14.4W		120°	RGB


Detail specification of LED Strip Lighting SMD5050:
Material:   Flexible PCB(white/yellow/black) + SMD LEDs
Color: Red, Yellow, Blue, Green, White, Full Color(RGB),
LED brand&style:  Epistar SMD 5050
LED Qty:  30/60 LED/metre
Brightness:  60-840lm/ metre, up to different color and LED Qty.
Wattage-Actual: 7.2W, 14.4W/M
Voltage: DC12V/24V,
IP rank:
IP20: LED strip only(non-waterproof);
IP65: epoxy coated;
IP67: silicon tube wrap;
IP68: tube &silicon encapsulated ;
Viewing Angle: 120°
Dimession:1000*10*3MM
Average lifetime:  50,000hours
Power Factor:  >0.95
Standard: CE, RoHS
Temperature: -40~60°C
Features of LED Strip Lighting SMD5050:
1) Various colors including single color and RGB colors
2) 5m/reel for standard length, different length available
3) Solid-state, high shock / vibration resistant
4) Viewing angle is 120 degrees and voltage is 12V/24V DC
5) Maintenance free, easy installation
6) Long life 100,000hrs+ (10+ years), white LED, 50,000hrs+

Applications of LED Strip Lighting SMD5050:
1) architectural decorative lighting
2) accent lighting
3)border/contour lighting
4)emergency&security lighting
5) Auditorium walkway lighting
6) Stairway accent lighting
7) Concealed lighting
8) Backlighting for signage letters
9) Channel letter lighting
10) Cove lighting
Term and Package of LED Strip Lighting SMD5050:


1. All the  price are based on EXW factory standard export  packing
2. Delivery time: 3-10days  after received your  payment  notice
3. Payment : T/T,Western Union ,Paypal
4. Package:PE bag/Blister packing/anti-static packing
