30w led corn light without ballast

30w led corn light retrofit power efficient more than 90% bight light

This LED warehouse light with 3400lm theoreticaly can replace 90w CFL.  Having passed TUV ETL FCC PSE CE and RoHS certifications. We promise 3 years warranty.  360 degree beam angle design, which make full of using of light and saving the energy.


Electrical data



Rated wattage	33 W
Input Voltage	85-265 VAC (AC100-277V is available)
Operating frequency	50/60 Hz
Rated power factor λ	>0.90
Power Efficiency	>  0.87
Humidity	< 90%
Ambient temperature	-40~45℃
Base (standard designation)	E26 E27 E39 E40
Replacement conventional lamp power	65W CFL
Dimmable	NO



Light technical data



Light Source/Count	486pcs 3528 SMD LED
Luminous flux	3600 Lm
Color temperature	Warm White:2,700 ~ 3,500K      Natural White:4,000～5,000K         Cool    White: 5,500～6,700K
Color rendering index Ra	Ra＞70
Starting time	0S
LED Emitter Life	50000h
LED Lamp (Light Bulb) Life	35000h





Features & advantages:

1. should  be installed simply and conveniently so as to reduce the installation cost and power depreciation.

2. This the fourth genenation of LED corn lamp.

3. CE and RoHS approved.

4.3 years warranty.

5.Neutral  packing with PSE foam wich protect the safe of the lamp during the transformation.

6. Driver has passed ETL. And LED luminous efficiency is more than 100Lm/W.

7. Available for 24VDC solar power.



Attention

 When the products are used in the outdoor lighting,ensure the space is waterproof and well ventilated.Pay attention to the size of the confined space.Ensure the lamp has enough space for heat dissipation which ensures lumen maintenance and extends its working life.



Comparion

IES Test






Application

Usually for indoor using such as office, lobby, copany, room, market etc. If be used in outdoor, it need a lamp fixture. And pay attention to the dia of the lamp fixture. The Dia of the lampshade should be no less than 35cm. Because the heat sink is an important factor to influnt the lamp\'s lifespan.

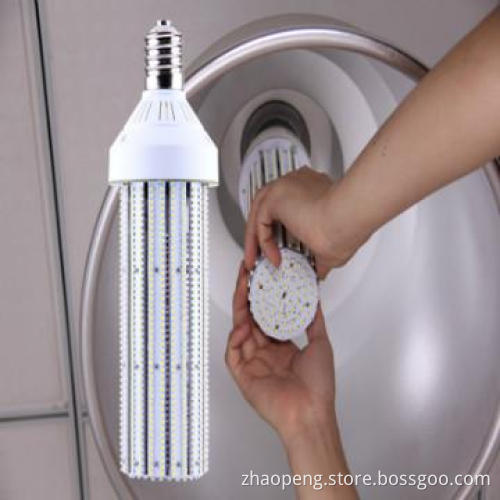

Installation



Package




Product Name				NSWL-60W12S-900S3	NSWL-80W12S-1160S3
Wattage	30W	40W	50W	60W	80W
Beam Angle	360°
Light Source/Count	486pcs 3528 SMD LEDs	660pcs 3528 SMD LEDs	780pcs 3528 SMD LEDs	900pcs 3528 SMD LEDs	1160pcs 3528 SMD LEDs
Lamp Base	E40  E39  E27  E26
Power consumption	33W ±5%	44W ±5%	56W ±5%	66W ±5%	88W ±5%
Luminous flux	3600lm	4900lm	5900lm	6800lm	9000lm
Color Temperature Standard	Cool white: 5500~6700K
Natural white: 4000~5000K
Warm white: 2700~3500K
Input voltage	85 -265 VAC (AC100-277V is available)
LED Emitter Life	50,000 hours
Replacement	CFL 65W	CFL 95W	CFL 105W	CFL 120W	CFL 160W
Application	Indoor using, such as warehouse,lobby,office, supermarket,restaurant ,etc..
Size	Dia 90mm * 204mm	Dia 90mm * 235mm	Dia 90mm * 260mm	Dia 90mm * 285mm	Dia 105mm * 290mm
Operating temperature	-40～45℃
