2G11 12 Watt LED Tube Light

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

beam angle	120°
size	45.5mm * 315mm
power consumption	13W±10%
lamp base	2G11
Life	50000hrs
Package	Yes
Light Source Chip	Epistar
Tube Diameter	T5
Voltage	110-220V
Illuminant	LEDs
Color Tones	Pure White
Power	13W

Detail Description

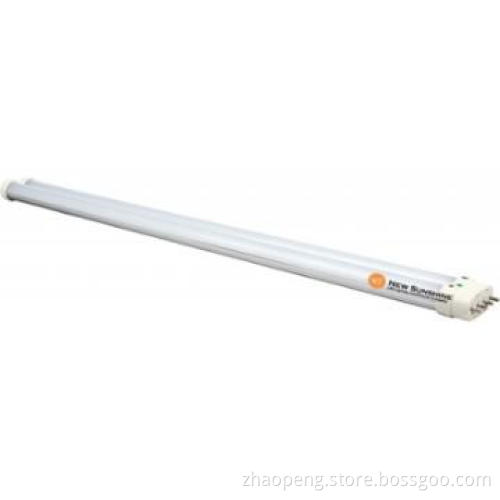

LED Tube Light 2G11 12W Replacing CPL 24W

12w lifetime of 50,000 hours ,2g11 12w led up to 80% energy saving compared to conventional lamps.

Specifications:

1. Beam angle: 120°

2. Professional LED lamp replacing CPL 24W

3. Size: 45.5mm * 315mm

4. Lamp base: 2G11

5. Input voltage: 85-265VAC

6. Power consumption: 13W±10%

7. LED source: 120pcs 3014 SMD LEDs

8. Luminous flux: 1100lm±10%

Color temperature:

     1)Cool white: 5500~6700K
     2)Natural white: 4000~5000K
     3)Warm white: 2700~3500K

Advantages:

   1)Up to 80% energy saving compared to
     conventional lamps.
   2) Lifetime of 50,000 hours

Application:
Indoor using, such as bus, train, hotel,office, supermarket,restaurant ,etc..

12.Operating temperature: -40～45℃

The relevant product parameters：

Product Name	NS2G020-08D4-1	NS2G030-12D4-1	NS2G040-15D4-1	NS2G050-18D4-1
Wattage	8W	12W	15W	18W
Beam Angle	120°	120°	120°	120°
Light Source/Count	80pcs 3014 SMD LEDs	120pcs 3014 SMD LEDs	160pcs 3014 SMD LEDs	198pcs 3014 SMD LEDs
Lamp Base	2G11	2G11	2G11	2G11
Power consumption	9W ±10%	13W±10%	17W ±10%	19W ±10%
Luminous flux	820lm ±10%	1100lm±10%	1350lm ±10%	1600lm ±10%
Color Temperature Standard	Cool white: 5500~6700K
Natural white: 4000~5000K
Warm white: 2700~3500K
Input voltage	85-265VAC
LED Emitter Life	50,000 hours
Replacement	CPL 18W	CPL 24W	CPL 36W	CPL 40W
Application	Indoor using, such as bus, train, hotel,office, supermarket,restaurant ,etc..
Size	45.5mm * 220mm	45.5mm * 315mm	45.5mm * 410mm	45.5mm * 535mm
Operating temperature	-40～45℃

Additional Information

Payment Terms	T/T
Minimum Order	1
Lead Time / Delivery Time	3 Day(s)
Sample Available	YES
Delivery Details	Trail Order 3~7 Days / Mass Order 10~20 Days. Samples delivered after payment received. Deliver immediately once Payment received
FOB Port	Yantian
Loading Info	By Express/Air Plane/Marine
Packing Info	Special natural colorful box package
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
