Taiwan Epistar 2G11 15 Watt LED Tube Light with CE RoHS 3 years warran

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

2G11 15 Watt LED Tube Light Replacing CPL 36W

Specifications:

1. Beam angle: 120°

2. Professional LED lamp replacing CPL 36W

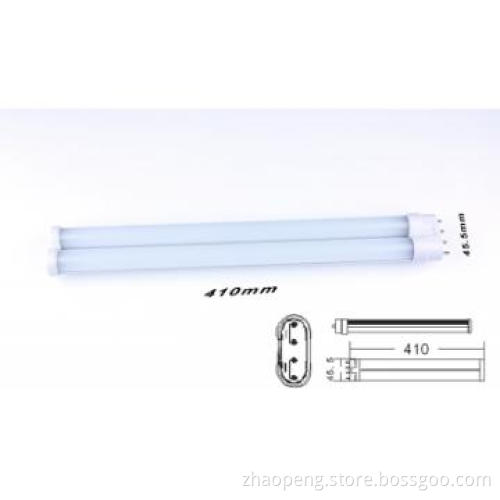

3. Size: 45.5mm * 410mm

4. Lamp base: 2G11

5. Input voltage: 85-265VAC

6. Power consumption: 17W ±10%

7. LED source: 160pcs 3014 SMD LEDs

8. Luminous flux: 1350lm ±10%

9.Operating temperature: -40～45℃

Color temperature:

     1)Cool white: 5500~6700K
     2)Natural white: 4000~5000K
     3)Warm white: 2700~3500K

Advantages:

1)Up to 80% energy saving compared to conventional lamps.

2) Lifetime of 50,000 hours

Application:

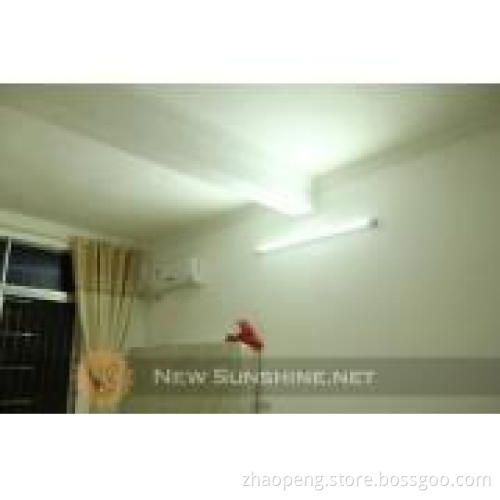

2G11 15 watt LED tube light used as indoor using, such as bus, train,hotel,office, supermarket,restaurant ,etc..

The relevant product parameters:

Product Name	NS2G020-08D4-1	NS2G030-12D4-1	NS2G040-15D4-1	NS2G050-18D4-1
Wattage	8W	12W	15W	18W
Beam Angle	120°	120°	120°	120°
Light Source/Count	80pcs 3014 SMD LEDs	120pcs 3014 SMD LEDs	160pcs 3014 SMD LEDs	198pcs 3014 SMD LEDs
Lamp Base	2G11	2G11	2G11	2G11
Power consumption	9W ±10%	13W±10%	17W ±10%	19W ±10%
Luminous flux	820lm ±10%	1100lm±10%	1350lm ±10%	1600lm ±10%
Color Temperature Standard	Cool white: 5500~6700K
Natural white: 4000~5000K
Warm white: 2700~3500K
Input voltage	85-265VAC
LED Emitter Life	50,000 hours
Replacement	CPL 18W	CPL 24W	CPL 36W	CPL 40W
Application	Indoor using, such as bus, train, hotel,office, supermarket,restaurant ,etc..
Size	45.5mm * 220mm	45.5mm * 315mm	45.5mm * 410mm	45.5mm * 535mm
Operating temperature	，-40～45℃

Payment Terms	T/T
Minimum Order	1
Lead Time / Delivery Time	3 Day(s)
Sample Available	YES
Delivery Details	Trail Order 3~7 Days / Mass Order 10~20 Days. Samples delivered after payment received. Deliver immediately once Payment received
FOB Port	Yantian
Loading Info	BY DHL UPS FEDEX
Packing Info	Special natural colorful box package
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
