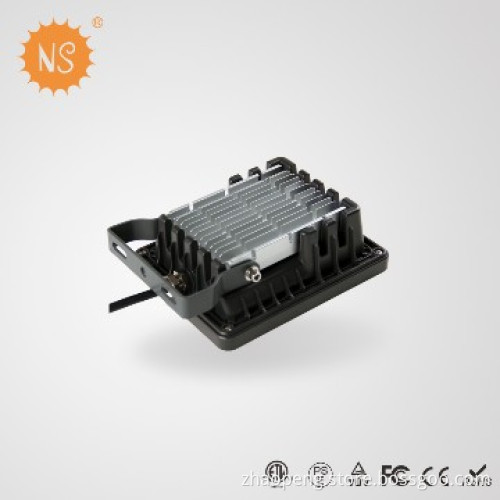

10W IP65 outdoor LED Floodlight

Product features:

1.Integrative design for heat sink and housing; The LED is closely connected to the surface. The heat from the LED is removed through the heat dissipation wing and also by air ventilation.
2.The surface is passed through anodic oxidation treatment.Its structure is compact and beautiful. It can meet the requirement of IP65. It has good capacity like antisepticising,waterproofing, and dust Prevention.
3.Aluminium alloy diecast baking varnish heat sink, clear temprered glass, ensures good heat dissipation.
4.Use toughened glass and the light transmittance is about 93%.
5.Safe and easy for installation and maintenance.
6.High heat conductivity,low luminous decay,pure light color and no ghosting.
7,NO UV and near-IR radiation in the light beam.
8.Very low energy consumption,Lower thermal output.
9.Mainly used in Landscape Accent, Architectural Lighting, Artwork lighting,bulletin,billboard, amusement park accent. etc,.

Applications:

Technical data:

Replacement HPS 30W / Halogen Flood Lights 50W

Step 1: Power must be cut off before installation,it\'s not allowed to do all this with power on.

Step 2: Put two screws on where required the same size as position A what it\'s indicated in the diagram.

Step 3: turn up to any beam angle needed by rotating the lamp body.

Step 4:Make connection of Blue with L line, Brown with N line and yellow green wires with Earth Line, turn it on when it\'s connected properly.

Package:
