85-277VAC 20w E27 E40 led high bay led light corn

85-277VAC 20w E27 E40 led high bay led light corn

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

replacement	75w hps or cfl
Light Source	LED
IP	IP41
Material	Aluminum, PC
Voltage	90-260V

Detail Description

85-300VAC 20w E27 led light corn

Product name: NSWL-20W-300SMD 3528

Specification:

1)Light Source: 300 LEDs

2)E40 30w light luminous Flux:2100LM, warm white

3) Rated Wattage:22W

4)Base: E40/E39/E27

5) Rated Voltage: 85~300VAC,50/60Hz

6) Color Temperature: WW(2700~3500K), NW(4000-5000K) or CW(5500-6700K)

7) Beam Angle: 360 °

8) Lifetime: 50,000 Hours

9) Size:Dia90mm *L196mm

10) Net weight: 0.5kg

11) CE .ROHS ETL,TUV SAA approved

12) Body Temperature:<70°C @Ta=25 °C

13)Recommended Replaced Bulb 75W CFL,HPS,Mercury Vapor Lamp

14)24VDC for solar power system is available

15)IP Rating: IP40

Advantages:
1. Energy Conservation 80%

led holiday time lights E40 20w meets the demands of social development and the requirements of energy conservation, and brings incomparable social benefits and economic benefits. the lights not only greatly decrease the maintenance cost and electricity bills, but also significantly reduce energy demand and greenhouse-gas emissions.

2. LED Factory Hanging Light E40 20w is the New Patent Products

3.About Warranty: 5 years warranty

Attestation:

20 WATT LED SCREW-IN HIGH POWER SMD CORN BULB WL SERIES

Lamp type	LED
Lamp cap	E40 / E27
Rated power (W)	20
Rated luminous flux (lm)	2460
Rated color temperature (CCT) (K)	4400
Rated chromaticity	0.3664, 0.3661
Rated color rendering (CRI)	≥70
Rated beam angle ( °)	360°
Rated life (h)	35000
Rated power factor	≥0.95
Declared mercury content (mg)	--
Ambient Condition (℃, %R.H.)	25.1, 60

Product features:

1.Unique structure design removable power supply and light source (easier for power supply and light source replacement if needed).

2.Aluminum fin-shape heat sinking and active air exchanging cooling system in order to speed up heat dissipation.

3.No UV and near-IR radiation in the light beam.

4.Very low energy consumption,Lower thermal output.

5.Popular, ballast free, easy installation. Complies with TUV and ETL.

6.Not suitable for dimmers ,electronic switches and remote controls

7.Can be easily fitted instead of ordinary light bulbs.

8.Mainly used in work places, supermarkets and public lighting.

Attention:

When 20W warehouse light is used in confined space, the diameter must be more than 35cm.

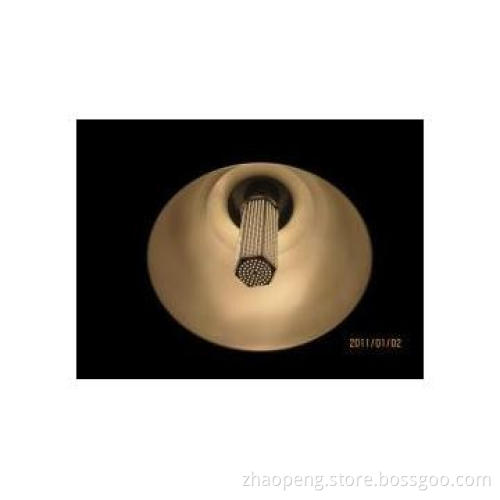

When the products are used in the outdoor lighting,ensure the space is waterproof and well ventilated.Pay attention to the size of the confined space.Ensure the lamp has enough space for heat dissipation which ensures lumen maintenance and extends its working life. As shown below, for your reference

Electrical data:

Rated wattage	20W
Input Voltage	100-240V AC,50/60 Hz
Operating frequency	50/60 Hz
Rated power factor	>0.95
Power Efficiency	>0.87
Humidity	<90%
Ambient temperature	-40~45°C
Base (standard designation)	E40/E27
Replacement conventional lamp power	--W CFL
Dimmable	NO

Light technical data:

Light Source/Count	300pcs 3528 SMD LED
Luminous flux	2460LM
Color temperature	Warm White: 2,700 ~ 3,500 K
NaturalWhite: 4,000～5,000 K
Cool White: 5,500～6,700K
Color rendering index Ra	Ra＞70
Starting time	0 S
LED Emitter Life	35000hrs
Lifepan of LED Lamp	35000hrs

Applications:

LED Replacement:

Key Benifits of comparison	LED Energy Saving light 20W	ECTONE HIGH LUMEN TWISTER 35W	Incandescent Lamp 150W
Luminous Flux(Lm)	2460	2258	1845
Efficiency(Lm/W)	100	64	12
Better Color Appearance Measured in color Rendering index	73	83	98
Wide Color Availability In CCT(kelvin)	2700-6700	2700-6700	2700
Starting Time Quick Start (min)	0	3	0
The life of the lamp(H)	35000	8000	5000

Light Distribution diagram:

Logistical Data:

Packaging unit (Pieces/Unit)	Dimensions	Gross weight	Volume
pearl cotton 1	26.712.712.7cm	560g	0.005m3
Shipping Carton box 4
Shipping carton box 18	554342cm	11.35Kg	0.125m3

Additional Information

Payment Terms	T/T, Others
Minimum Order	12 pcs
Lead Time / Delivery Time	3 Day(s)
Sample Available	YES
Delivery Details	Samples in 3 days when get the payment. 50-500pcs lead time is 7 days .
FOB Port	Shenzhen
Loading Info	By DHL,UPS, FEDEX, TNT, BY SEA
Packing Info	12PCS/CTN, g.w15 kg, meas:544341cm
Target Market(s)	Eastern Europe, Japan & Korea, Latin America, North America, Northern Europe, Oceania, Western & Southern Europe
