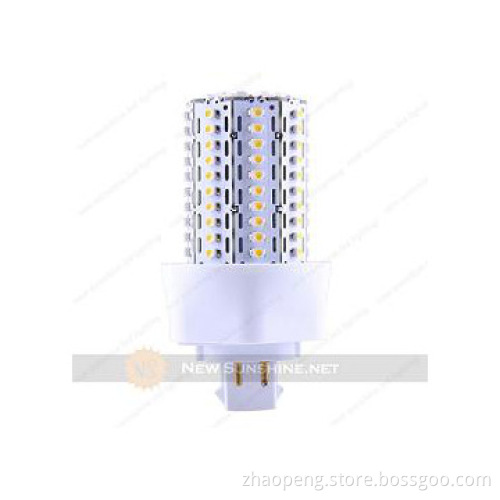

6 Watt high quality CE Rohs E14 GX24Q G24Q indoor housing led bulbs

6 Watt high quality CE Rohs E14 GX24Q G24Q indoor housing led bulbs

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Product name	6w housing led bulbs
Input Voltage	85-265 VAC
Operationg frequency	50/60 HZ
Replacement convertional lamp power	11w CFL
Base	E26/E27/E14/B22/GX24Q/GX24D
Power	6
Life	50000 hours
Color Tones	Pure White
Illuminant	SMD
Lamp Holder	E14, E26, E27, G24X
Light Source Chip	Epistar
Voltage	90-260V
Dimmable	No
Shape	Candle Shape
Package	Yes
Power Storage or Not	No
Material	Aluminum
Lamp Base	B22, E14, E26, E27, G24X

Detail Description

6 Watt A19 LED Bulb replace metal halide MH/HID

Application

1.Indoor using; hource, room, warehouse, cellar, lobby, conpany, office, supermarket,ect…

2.Outdoor using should be with a lamp fixture and take measures to waterproof and dustproof. Like picture 2 showed of application in Germany as below.

Adavantages

1. Just 6W LED Corn Bulb can replaces 30W CBL, up to 80% energy saving, envirent friendly.
2. Lifespan can up to 50,000 hours
3. With CE , RoHS certifications
4. Good after-service with 2 years warranty
5. Our company has strong R & D team, skilled engineering and production management staff.

Parameters

Light Source	Luminous Flux	Rated wattage	Lamp Base	RatedVolttage	CCT	BeamAngle	Replacement	Size
100 pcs SMD LED beads	550LM	7W	E27,E26,E14,B22, G24Q1,G24Q2, G24Q3, G24Q4	85~265VAC, 50/60HZ	CW,NW,WW	360 degree	30w CBL	dia40mm*101mm

Comparing LED Corn Bulb with the traditional bulbs

Light Ageing Time Testing

Size and Package
Size

Installation Instructions

Notice: NO need ballast,Pls remove the traditional ballast before installation;
Could not be installed in the inside sealed fitting ;

Parameters About many relevant prodfucts

Product Name	NSCL-3W-63S3	NSCL-6W-35S7	NSCL-6W-100S3
Wattage	3W	6W	6W
Beam Angle	360°
Light Source/Count	63pcs 3528 SMD LEDs	35pcs 5730 SMD LED	100pcs 3528 SMD LEDs
Lamp Base	E27 E26 E14	E27 E26 E14	E27 E26 E14 B22
Power consumption	4W +10%	7W +10%	7W ±10%
Luminous flux	330lm +10%	580lm +10%	580lm ±10%
Color Temperature Standard	Cool white: 5500~6700K
Natural white: 4000~5000K
Warm white: 2700~3500K
Input voltage	85-265VAC
LED Emitter Life	50,000 hours
Replacement	CFL 9W	CBL 30W	CBL 30W
Application	Indoor using,such as office,supermarket,restaurant ,clothing display,etc..
Size	Dia 40mm * 84mm	Dia 40mm * 101mm	Dia 40mm * 101mm
Operating temperature	;-40～45℃


Product Name	NSCL-7W-133S3	NSCL-9W-150S3	NSCL-9W-140S3	NSCL-18W-315S3
Wattage	7W	9W	9W	18W
Beam Angle	360°
Light Source/Count	133pcs 3528 SMD LEDs	150pcs 3528 SMD LEDs	140pcs 3528 SMD LEDs	315pcs 3528 SMD LEDs
Lamp Base	G24	E27 E26 B22	E27 E26 GX24Q GX24D	E27 E26 B22
Power consumption	8W ±10%	10W ±10%	10W +10%	20W ±10%
Luminous flux	680lm ±10%	900lm ±10%	900lm +10%	1700lm ±10%
Color Temperature Standard	Cool white: 5500~6700K
Natural white: 4000~5000K
Warm white: 2700~3500K
Input voltage	85-265VAC
LED Emitter Life	50,000 hours
Replacement	CFL 20W	CFL 25W	CFL 25W	CFL 50W
Application	Indoor using, such as lobby, office, supermarket,restaurant ,etc..
Size	Dia 44mm * 113mm	Dia 62mm * 100mm	Dia 48mm * 127mm(E27)	Dia 62mm * 190mm
Operating temperature	-40～45℃

Our service

1.Distributorship is offered for your unique design and some our currect models.

2.All your questions will be replied in 24 hours.

3.Protection of your sales area,Ideas of design and all your private information.

4.If the oder more than 500pcs 60w led street light housing,we will return back the payment of samples.

5.We provide 3 years warranty.

Lead time

Within 3-5 working days after receipt of payment for samples;

Within 10-20 working days after receipt of payment for large order.

Shipment

By courier,By air,by sea . Usually by DHL, UPS, FedEx.

The Company Profile

Founded in 2004,Headquartered in Shenzhen, Guangdong province, we own a high power team of R&D, managers, salesmen and skilled workers. We specialise in application of LED light technology for indoor-outdoor development and manufacture for illumination, such as LED street lights, LED warehouse lights, LED high bay lights, LED spot lights, LED bulbs, LED down lights and more.

Additional Information

Payment Terms	L/C, T/T, D/A, D/P, Credit Card, Western Union, Money Order, Paypal, Others
Minimum Order	10
Lead Time / Delivery Time	5 Day(s)
Sample Available	YES
Delivery Details	Within 3-5 working days after receipt of payment for samples; Within 10-20 working days after receipt of payment for large order.
FOB Port	Yantian
Loading Info	By courier,By air,by sea
Packing Info	1PC/White Box , size: 4646110mm ;297PCS/CTN, size: 554336CM; G.W.:19KGS
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
