9w CBL replacements 3w LED Light bulb

3w LED Light bulb

Parameters


Light Source	Luminous Flux	Rated wattage	Lamp Base	RatedVolttage	CCT	BeamAngle	Replacement	Size
63pcs 3528 SMD LEDs	330LM	4W	E27,E26,E14	85~265VAC, 50/60HZ	CW,NW,WW	360 degree	9w CFL	Dia 40mm * 84mm

Adavantages
1. Just 3W LED Corn Bulb can replaces 9W CFL, up to 80% energy saving, envirent friendly.
2. Lifespan can up to 50,000 hours
3. With CE , RoHS certifications
4. Good after-service with 2 years warranty
5. Our company has strong R & D team, skilled engineering and production management staff.

Comparing LED Corn Bulb with the traditional bulbs


Light failure Testing




IES Test

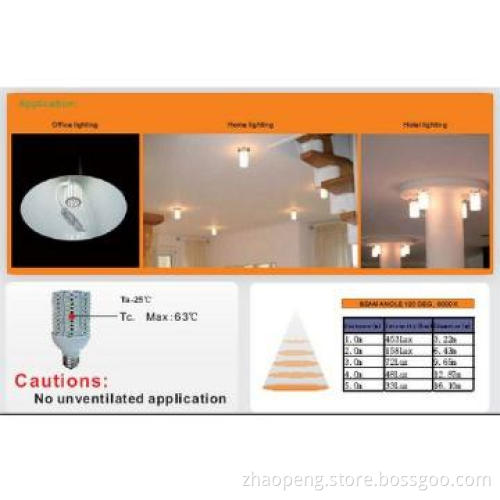

Application

1.Indoor using; hource, room, warehouse, cellar, lobby, conpany, office, supermarket,ect…
2.Outdoor using should be with a lamp fixture and take measures to waterproof and dustproof.

Installation Instructions

Notice: NO need ballast,Pls remove the traditional ballast before installation;
            Could not be installed in the inside sealed fitting ;


Lead time

 Within 3-5 working days after receipt of payment for samples;

 Within 10-20 working days after receipt of payment for large order.

Shipment

By courier,By air,by sea . Usually by DHL, UPS, FedEx.


Parameters About many relevant prodfucts


Product Name	NSCL-3W-63S3	NSCL-6W-35S7	NSCL-6W-100S3
Wattage	3W	6W	6W
Beam Angle	360°
Light Source/Count	63pcs 3528 SMD LEDs	35pcs 5730 SMD LED	100pcs 3528 SMD LEDs
Lamp Base	E27  E26 E14	E27  E26 E14	E27  E26  E14  B22
Power consumption	4W +10%	7W +10%	7W ±10%
Luminous flux	330lm +10%	580lm +10%	580lm ±10%
Color Temperature Standard	Cool white: 5500~6700K
Natural white: 4000~5000K
Warm white: 2700~3500K
Input voltage	85-265VAC
LED Emitter Life	50,000 hours
Replacement	CFL 9W	CBL 30W	CBL 30W
Application	Indoor using,such as office,supermarket,restaurant ,clothing display,etc..
Size	Dia 40mm * 84mm	Dia 40mm * 101mm	Dia 40mm * 101mm
Operating temperature	;-40～45℃
