AC180-528V 12750lm 347V 150W LED Industrial High Bay Lighting

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

LED Chip	CREE led industrial high bay lighting
CCT	2700-7500K led high bay light
Input Voltage	AC180-528V led industrial high bay lighting
Reflector	Acrylic or Aluminum led industrial high bay lighti
Beam Angle	45/ 60/ 90/ 120 degee led industrial high bay ligh
Voltage	380V
IP	IP54
Light Source	LED Lamp
Material	Acrylic, Aluminum

Detail Description

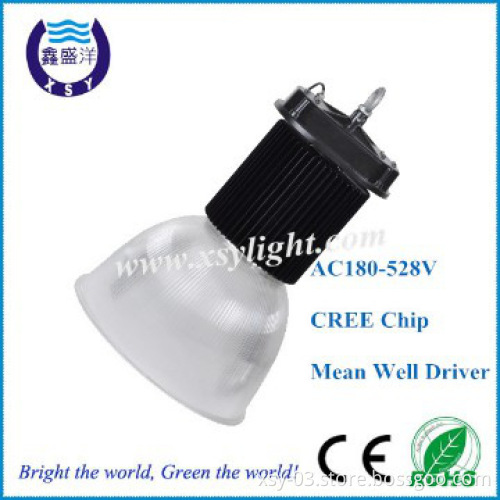

AC180-528V 12750lm 347V 150W LED Industrial High Bay Lighting

Specification

Product Name:	150W 347V led industrial high bay lighting
Model No.:	XSY-BHP150W-H
Input Voltage:	AC180-528V
LED QTY:	24 PCS Cree Chip
Total Power:	150W 347V LED High Bay
Driver Efficiency:	>92%
Harmonic distortion	<10%
Power Factor(PF):	>0.95
LED Efficiency:	90-100lm/w
Initial Lumen:	>12750lm
Driver:	HVG-150-48A
Color Temperature:	Warm white/ Nature white/ Cool white (2700-7500K)
Distribution of the light:	LED+ secondary distribution of the light reflector
The curve of light distribution:	symmetric expression/circular glare
Protected Grade:	IP54
Working Temperature:	-44-50°C
Working Humidity:	10 ~ 90%RH
Material for light :	Aluminum
Case Color Available:	Black & Silver
Beam Angel Available:	45°/90°/120°
Life Span:	50000 hours
N.W/G.W of Heat Sink:	6.5 KGS/ 8 KGS
Heat Sink Dimension:	240x100mm
Warranty:	3 years
Factory	XSY Lighting

Pictures:

Different Beam Angle Reector

Highlights of 347V led industrial high bay lighting

Highlights of 347V LED High Bay Light:

1, High input voltage 180-528 V AC

2, CREE chip, Mean Well driver and high-tech heat sink to ensure long life span of the light.

LED Chip

24pcs XML CREE chip: 6000 hours life test, LM-80 report available

Mean Well Driver:

150W 1pcs HVG-150-48A and 200W 2 pcs HVG-150-48A driver

can be used under 480V AC high voltage

Application:

Widely used in factory, workshop, warehouse , logistics center exhibition hall, gymnasium, shipyards, mining, high way toll station, gas station supermarket, a farmers’s market and other need lighting places.

Package:

347V LED High Bay Light	100W	150W	200W
NW	6.5 KG	7.2 GK	8.5 KG
GW	7.5 KG	8.5 KG	10 KG
Carton of Heat Sink	30x30x30 CM	30x30x750px CM	30x30x35 CM
Reflector	120º 555535CM/ 90º 555558CM/ 45º 484850CM 10PCS/CTN

You are warmly welcome to visit our factory!

Shenzhen XinShengYang Opto-electronics Technology Co., Ltd

-- LE-CHAMPION ELECTRONICS(HK) CO., LTD

Angela Liu

corich6

---- Thank you for your visiting !

Additional Information

Payment Terms	T/T, Western Union, Paypal
Minimum Order	1
Lead Time / Delivery Time	7 Day(s)
Sample Available	YES
Delivery Details	Sample order: 100% payment in advanceLarge quantity: FOB Shenzhen or EX-W. 30% advanced payment should be made before production, the balance should be made before delivery of the products
FOB Port	Hong Kong,Shenzhen,
Loading Info	Sample orders: By DHL, FEDEX or UPS . Bulk orders: By sea or By air.
Packing Info	Net Weight: 6.7KGGross Weight: 8KGHeat sink Package Size: 300300292mmProduct Package Size: 540540525mm(120°)470470478mm(45°)
Target Market(s)	North America, Eastern Europe, Western & Southern Europe, Northern Europe
