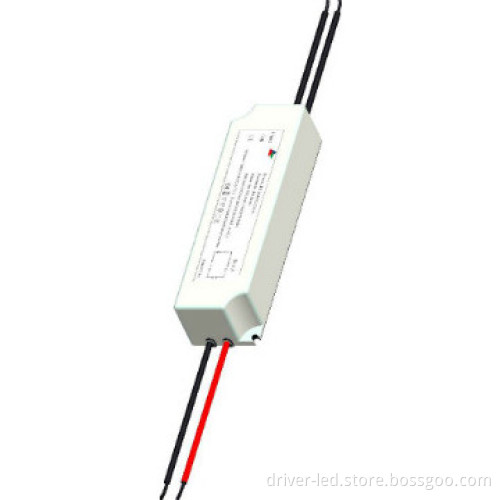

5-12WDimmable LED Driver (Constant Current)
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
Detail Description
| Input specification | Input voltage | AC120V/230V |
| Input frequency | 50/60Hz | |
| Input surge | 20A@120VAC 40A@230VAC | |
| Output specification | Start-up time | ≦1S(230V Input ,Io=100%) |
| keep time | ≧20mS (230V Input ,Io=100%) | |
| Voltage regulation | (full)≦0.5% | |
| Protection function | Overload protection | 105% - 150% rated power, automatic recovery |
| Over-voltage protection | 105% - 150% of the rated voltage | |
| Insulation intensity | Input---output | 1500VAC/1min |
| Input--ground | 1500VAC/1min | |
| Output---ground | 500VAC/1min | |
| Safety standards | According with GB4943, UL60950-1,EN60950-1 | |
| E M C standards | According with GB9254, EN55022 class A EN61347-2-13:2008 standards | |
| Environmental | working temperature | - 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) |
| Storage temperature | - 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost) | |
| height above sea level | ≦2000M | |
| Structure | Size(mm) | 97(L)x31(W)x24(H) |
Additional Information
| Payment Terms | L/C, T/T, Paypal, Others |
|---|---|
| Minimum Order | 100 |
| Lead Time / Delivery Time | 20 Day(s) |
| Sample Available | YES |
| FOB Port | Shenzhen |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
