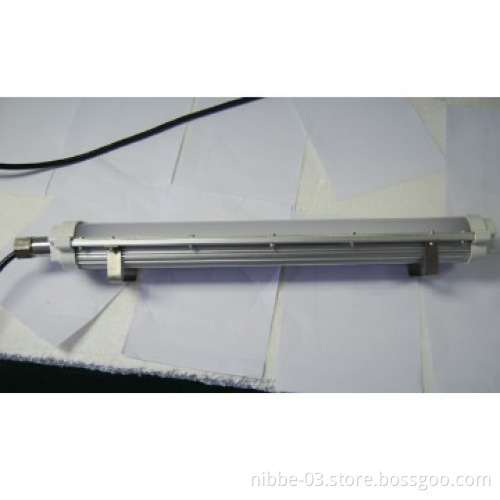

LED explosion-proof fluorescent Lamp

LED explosion-proof fluorescent Lamp

Features:

1. Increased safety type of explosion proof grade, 95-265V alternating current and 24V direct current for option

2. Integrated type of tube, adopt SMD LED on aluminum base, make aluminum base completely attached to heat sink which composed of lamp body to make sure excellent heat dissipation, lead to long lifetime.

3. Adopt silicon encapsulated sealed power supply whose body made of aluminum alloy, put it inside of aluminum body and closed attached to heat sink to make sure heat dissipated from power supply.

4. Cover made of high quality PC which enjoy high-strength, impact resistant, hot resistant, corrosion-resistant.

5. Completely sealed to waterproof, dust-proof, corrosion-resistant.

6. Smart appearance, equip with two mounting brackets,it can be installed easily.

LED explosion-proof fluorescent Lamp

Application:

Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base,etc. Zone I and Zone ⅡHazardous Locations, Zone 20, Zone 21, Zone 22 and Ⅱ A, Ⅱ B, Ⅱ C explosive gas atmosphere.

Our high level cost control makes sure good quality with competitive price. As a trustful partner of many clients around the world, we will make your global merchandising a pleasure and will be the one you count on mostly in the industry.

1 Sample

 One pc sample is acceptable

 2 Customized

Our engineering experts not only provide tailor-made solutions according to client\'s requirements, but also create broad range of value-added accessories to existing vehicle market. With our effective services and reputable records, we have well-established relationships with customers worldwide. Our stringent quality control has enabled us to become an OEM/ODM projects supplier with solid track records.

3 After-sales

 NIBBE guarantees the quality of LED explosion proof light for limit of three years.
LED explosion-proof fluorescent Lamp


Why Not NIBBE?

1 NIBBE is one of the largest and leading Explosion-proof Lighting factory in China.

2 Most NIBBE products use high quality imported COB LED and Power Supply.

3 NIBBE has the highest standard and its products can meet Ex d II C T6 Gb, Ex d I Mb.

4NIBBE has a wide product range and covers all main kinds of explosion proof lights and is ideal for one-stop sourcing.

5 NIBBE has over 10 global patents.

6 NIBBE factory has been certified with ISO 9001: 2008 system

7 NIBBE is the first Chinese factory with main international approvals, including ATEX, cLCus, CE, RoHS, etc.

8 NIBBE products have at least 3 years warranty.

9 NIBBE is the key supplier of big enterprises, such as SINOPEC, CNPC, CNOOC, and etc.

10 NIBBE has rich gloal experience and has exported to over 40 countries for 5 yrs.

11 NIBBE is one hour drive from Hong Kong and very easy to visit.

LED tube lighting



5. How to mount and use
(1) Decide a place to mount the light and choose a mounting type. Mounting types are illustrated in the suffix of this document. Fixed the light firmly to mounting place.
 (2) After having fixed the light, connect cable of the light with cable from AC power source. 1m long triple core cable of 10mm diameter is equipped with the light. There are triple core lines in the cable of the light and markings on the lines, indicating live line (L), neutral line (N) and ground line (E). Connect each line rightly with line in the cable from the AC power source, respectively.
(3) Switch on the light. It will shine instantly.

6. Attentions
(1) Before mounting and use of the light, read through this Instructions and check whether voltage of power source conforms to that required for the light. If not, it may cause breakdown of the light and there may be a case that you should choose a differently rated light.
(2) Make surface of the light case and lens clean to ensure light transmittance and heat diffusion.
(3) Be careful not to have the light case contacted to hard materials in order to avoid scratches.
(4) Do not let amateur mount the light.
(5) Never neglect to ground the light. It is important to ensure security of power source and protection from lightening surge of the light.
(6) Ambient temperature for the light should be in the range from -20℃ to 40℃. When it exceeds 40℃, make forceful ventilation to accelerate heat diffusion.
(7) Repairs and maintenance
i)       Check periodically elasticity of sealing materials. In case they lose elasticity due to aging, replace them with those of exactly same specifications (both size and hardness). Alternative materials may not be used.
ii)     Conduct periodically insulation resistance test with 500V Megger so that insulation resistance does not get lower than 2MΩ.
iii)    In maintenance work, take care of the surface of flameproof enclosures. As the surface may not have damages and corrosion, it was coated with rust-proof oil 204-1 in assembly. Do not soil the surface or damage the sealed part.
(8) Safety cautions
In all repairs, maintenance and other works, it is required to cut off power before the works.
