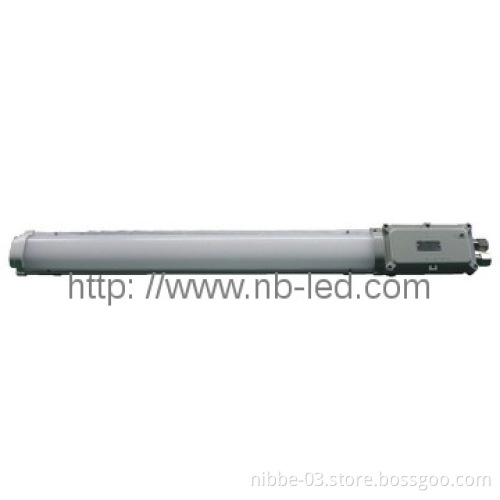

explosion proof LED led tube
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| explosion proof | Ex d Ⅱ B T6 |
|---|---|
| Name | LED led tube |
| wattage | 40W |
| warranty | 3 YEARS |
| Category | explosion proof light |
| Voltage | 110-220V |
| Application | Airport, Bathroom, Bathroom Room, Bedroom, Car Park, Church, Cinema, Gallery, Garage, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room |
| Material | ABS, Acrylic, Aluminum, Aluminum Die Casting, Ceramics, Chrome, Cold Rolled Steel, Copper, Crystal, Fabric, Glass, Iron, Leather, Magnesium, PC, PMMA, PVC, Paper, Plastic, Silicone, Stainless Steel, Steel, Stone, Wooden |
| Light Source | LED |
Detail Description
20W/30W/40W/50W/60W
Ex mark: Ex de II C T6/ DIP A20 TA, T6
Application：
Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base, etc. Zone I and Zone hazardous Locations, Zone 20, Zone 21, Zone 22 and Ⅱ A, Ⅱ B, Ⅱ C explosive gas atmosphere.
Features：
1. Increased safety type of explosion proof grade, 95-265V alternating current and 24V direct current for option;
2. Integrated type of tube, adopt SMD LED on aluminum base, make aluminum base completely attached to heat sink which composed of lamp body to make sure excellent heat dissipation, lead to long lifetime.
3. Adopt silicon encapsulated sealed power supply whose body made of aluminum alloy, put it inside of aluminum body and closed attached to heat sink to make sure heat dissipated from power supply.
4. Cover made of high quality PC which enjoy high-strength, impact resistant, hot resistant, corrosion-resistant.
5. Completely sealed to waterproof, dust-proof, corrosion-resistant.
6. Smart appearance, equip with two mounting brackets，it can be installed easily.
Technical Parameters：
Ex mark: Ex de II C T6/ DIP A20 TA, T6
Application：
Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base, etc. Zone I and Zone hazardous Locations, Zone 20, Zone 21, Zone 22 and Ⅱ A, Ⅱ B, Ⅱ C explosive gas atmosphere.
Features：
1. Increased safety type of explosion proof grade, 95-265V alternating current and 24V direct current for option;
2. Integrated type of tube, adopt SMD LED on aluminum base, make aluminum base completely attached to heat sink which composed of lamp body to make sure excellent heat dissipation, lead to long lifetime.
3. Adopt silicon encapsulated sealed power supply whose body made of aluminum alloy, put it inside of aluminum body and closed attached to heat sink to make sure heat dissipated from power supply.
4. Cover made of high quality PC which enjoy high-strength, impact resistant, hot resistant, corrosion-resistant.
5. Completely sealed to waterproof, dust-proof, corrosion-resistant.
6. Smart appearance, equip with two mounting brackets，it can be installed easily.
Technical Parameters：
| Power Consumption | 20W | 30W | 40W | 50W | 60W |
| Input Voltage | 220V AC（applied for 95-265V） | ||||
| Frequency | 50Hz/60Hz | ||||
| Explosion-proof Grade | Ex embⅡC T6 | ||||
| Corrosion-proof Grade | WF2 | ||||
| IP Grade | IP66 | ||||
| Light Effect | ≥90lm/W | ||||
| Beam Angle | 120° | ||||
| Power Factor | ≥0.90 | ||||
| Cable Entry | Φ8～Φ10mm | ||||
| Installation Height | 2～5m | ||||
| Ambient Environment | Temperature:-30°C-55°C; Humidity:10-90%RH(25°C) | ||||
| Storage Temperature | -40°C-60°C | ||||
| Lifespan | ﹥50000Hs | ||||
| Material | Aluminum Alloy&PC | ||||
| Dimension | L850XW136XH91.5mm | L1295XW136XH91.5mm | |||
| Net Weight | 4.5KG | 6.9KG |
Additional Information
| Payment Terms | L/C, T/T, D/A, D/P, Credit Card, Western Union, Money Order, Paypal, Others |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | eXW LED explosion proof light |
| FOB Port | Beihai,Dalian,Foshan,Fuzhou,Gaoxiong,Guangzhou,Haikou,Hong Kong,Huangpu,Jiangmen,Jilong,Lianyungang,Macao,Nanjing,Nansha,Ningbo,Qingdao,Qinhuangdao,Shanghai,Shantou,Shanwei,Shekou,Shenzhen,Taibei,Tianjin,Wenzhou,Xiamen,Yantai,Yantian,ZhangJiaGang,Zhanjiang,Zhongshan,Zhuhai |
| Loading Info | CARTON explosion proof LED light |
| Packing Info | L770XW200XH170explosion proof LED light |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
