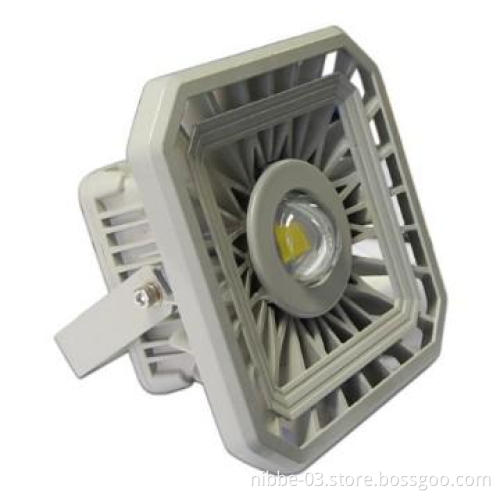

LED Explosion-Proof Light China factory
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Rated power | 560/80/100/120W |
|---|---|
| IP | 66 |
| Ex Mark | EX d Ⅱ B T5/ DIP A20 TA, T5 |
| Corrosion-proof grade | WF2 |
| Input Voltage | AC95~305, DC24V |
| Light Source | LED |
| Application | Advertising Lighting, Architectural Lighting, Bridge, Car Park, Garden, Highway, Highway Lighting, Mining, Park, Petrol Station, Pooling Lighting, Sport Lighting, Sport Yard, Square, Square Lighting, Tunnel Lighting |
| IP | IP66 |
Detail Description
1.LED Explosion-Proof Light China factory
2.LED Explosion Proof lights are CE&RoHS listed.
3.Oil refineries explosion proof led lights are widely used in oil fields,oil refineries,offshore oil platform,power plant.
4.Patented design for heat dissipation to ensure life of light source up to 50,000 hours.
5.Two kinds of input voltage AC 90-305V and DC 24V for option.
6.Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.
7.Die casting aluminum housing, with anti-static and anti-corrosion coating, high explosion-proof degree of flameproof type; dust-proof, waterproof; lens made of tempered glass which is thermal resistance, corrosion resistance, high light transmission.
8.Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality, clear lighting effect without a double image.
9.Beautiful appearance, several types of installation methods available.
| Parameter | Value |
| Power Consumption | 50W/60W/80W/100W/120W |
| Input Voltage | 220V AC（applied for 95-265V）or 24V DC |
| Frequency | 50Hz（applied for 47-63 Hz） |
| Beam Angle | 45°/60°/90°/120°/140° |
| Explosion-proof Grade | Ex dⅡB T5 |
| Corrosion-proof Grade | WF2 |
| IP Grade | IP66 |
| Power Factor | ＞0.95 |
| Total Harmonic Current | ＜15% |
| Lamp Efficiency（%） | ≥90% |
| Color Temperature（K） | Warm white：2700-4000K；Pure white：5000-6500K |
| Junction Temperature（TJ）） | ＜65℃ |
| Color Rendering Index（CRI） | Ra﹥70 |
| Light Effect | ﹥90lm/W |
| Ambient Environment | Temperature：-30℃—55℃；Humidity：10-90%RH(25℃) |
| Storage Temperature | -40℃-60℃ |
| Lifespan | ﹥50,000Hrs |
| Material | Aluminum Alloy |
| Installation Height | 4~10m（flood light）/10~30m（project light） |
| Dimension(mm) | 300×300×227 |
| Net Weight | 6.5Kg |
| Certificate | CE, ATEX, cLCus, China National Explosion-proof Certificate |
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 50 |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | 30% deposit, balance before shipment. |
| FOB Port | Shenzhen |
| Loading Info | By Sea, By air or By express |
| Packing Info | Production dimension: 365X365X300mmProduct net weight: 6.5KGCarton size can by customized.Carton material: Double strong corrugated paper. |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
