80W Hazardous Location Lighting Street Light
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Input Voltage | AC 90~305V/ DC24V |
|---|---|
| Input Frequency | 50/60HZ |
| Beam Angle | 120°/140°/ |
| LED Chip Brand | Bridgelux |
| Application | Sport Yard, Square Lighting, Highway, Architectural Lighting, Car Park, Petrol Station, Sport Lighting, Advertising Lighting, Highway Lighting, Garden, Bridge, Pooling Lighting, Tunnel Lighting, Square, Mining, Park |
| Light Source | LED |
| IP | IP66 |
Detail Description

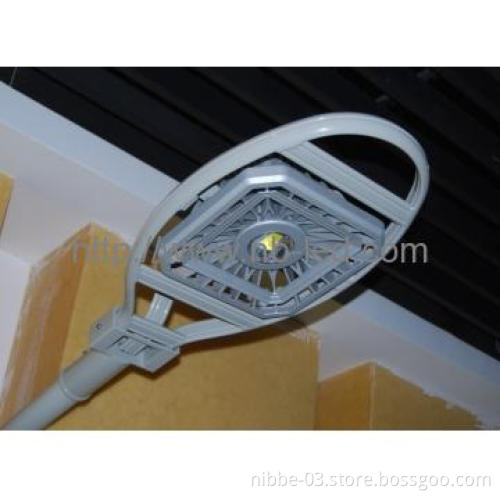

1.80W Hazardous Location lighting street light
2. Hazardous Location lighting with CE&RoHS
3. 3 years warranty.
4.95-265V alternating current and 24V direct current for option;
5.Die casting aluminum housing, with anti-static and anti-corrosion coating,high explosion-proof degree of flameproof type; dust-proof, waterproof;it can safely worked in explosive environment, moist environment, acid-base environment.
6.Light source adopt famous brand chip encapsulation, light degradation is less than 30% after light up 50,000 hours.
7.Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.
8.Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality for standard requirement of street light；
9.Patented appearance design,beautiful appearance with simple structure, it can be used as solar led street light when working at 24V DC.
Parameter |
Value |
Power Consumption |
50W/60W/80W/100W/120W |
Input Voltage |
220V AC(applied for 95-265V)/24V DC |
Frequency |
50Hz( applied for 47-63 Hz) |
Beam Angle |
Transverse:140° longitudinal:60° |
Explosion-proof Grade |
Ex dⅡB T5 |
Corrosion-proof Grade |
WF2 |
IP Grade |
IP66 |
Power Factor |
>0.95 |
Lamp Efficiency( %) |
≥90% |
Color Temperature( K) |
Warm white：2700-4000K；Pure white：5000-6500K |
Junction Temperature( TJ) |
<65℃ |
Color Rendering Index( CRI) |
Ra﹥70 |
Light Effect |
>80lm/W |
Ambient Environment |
Temperature：-30℃—55℃；Humidity：10-90%RH(25℃) |
Storage Temperature |
-40℃-60℃ |
Lifespan |
>50,000Hs |
Material |
Aluminum Alloy |
Installation Height |
6~12m |
Pole Diameter |
Φ48mm、Φ60mm |
Parameter |
Value |
Power Consumption |
50W/60W/80W/100W/120W |
Input Voltage |
220V AC（applied for 95-265V）/24V DC |
Frequency |
50Hz（applied for 47-63 Hz） |
Beam Angle |
Transverse:140° longitudinal:60° |
Explosion-proof Grade |
Ex dⅡB T5 |
Corrosion-proof Grade |
WF2 |
IP Grade |
IP66 |
Power Factor |
＞0.95 |
Lamp Efficiency（%） |
≥90% |
Color Temperature（K） |
Warm white：2700-4000K；Pure white：5000-6500K |
Junction Temperature（TJ）） |
＜65℃ |
Color Rendering Index（CRI） |
Ra﹥70 |
Light Effect |
﹥80lm/W |
Ambient Environment |
Temperature：-30℃—55℃；Humidity：10-90%RH(25℃) |
Storage Temperature |
-40℃-60℃ |
Lifespan |
﹥50000Hs |
Material |
Aluminum Alloy |
Installation Height |
6~12m |
Pole Diameter |
Φ48mm、Φ60mm |
Parameter |
Value |
Power Consumption |
50W/60W/80W/100W/120W |
Input Voltage |
220V AC（applied for 95-265V）/24V DC |
Frequency |
50Hz（applied for 47-63 Hz） |
Beam Angle |
Transverse:140° longitudinal:60° |
Explosion-proof Grade |
Ex dⅡB T5 |
Corrosion-proof Grade |
WF2 |
IP Grade |
IP66 |
Power Factor |
＞0.95 |
Lamp Efficiency（%） |
≥90% |
Color Temperature（K） |
Warm white：2700-4000K；Pure white：5000-6500K |
Junction Temperature（TJ）） |
＜65℃ |
Color Rendering Index（CRI） |
Ra﹥70 |
Light Effect |
﹥80lm/W |
Ambient Environment |
Temperature：-30℃—55℃；Humidity：10-90%RH(25℃) |
Storage Temperature |
-40℃-60℃ |
Lifespan |
﹥50000Hs |
Material |
Aluminum Alloy |
Installation Height |
6~12m |
Pole Diameter |
Φ48mm、Φ60mm |
Additional Information
| Payment Terms | L/C, T/T, Others |
|---|---|
| Minimum Order | 20PC |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | 30% deposit, balance before shipment. |
| FOB Port | Shenzhen |
| Loading Info | By sea/by air/by express |
| Packing Info | Product dimension: 900X440X295mmProduct net weight: 9.1KG |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
