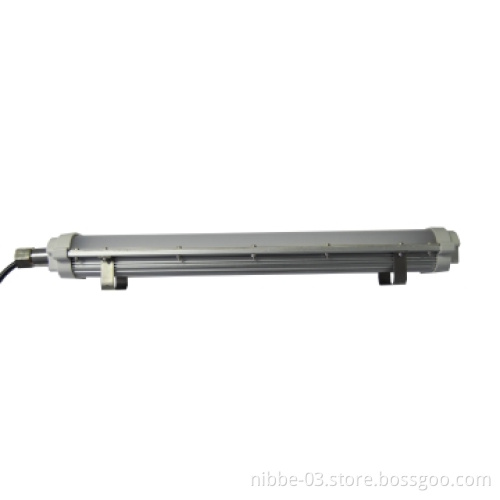

40W LED Explosion Proof Tube Light
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Input Voltage | AC90~305V/DC24V |
|---|---|
| EX Mark | Ex emb II C T6/DIP A20 TA,T6 |
| Corrosion-proof Grade | WF2 |
| input frequency | 50/60HZ |
| Length | 1315mm |
| Light Source | LED |
| Application | Advertising Lighting, Architectural Lighting, Bridge, Car Park, Garden, Highway, Highway Lighting, Mining, Park, Petrol Station, Pooling Lighting, Sport Lighting, Sport Yard, Square, Square Lighting, Tunnel Lighting |
| IP | IP66 |
Detail Description
1. 40W LED Explosion Proof Tube light
2. LED Explosion Proof Tube lights are CE&RoHS listed
3. Explosion Proof Tubes are widely used in power plants,.etc.
4.Increased safety type of explosion proof grade, 90-305V alternating current and 24V direct current for option;
5.Integrated type of tube, adopt SMD LED on aluminum base, make aluminum base completely attached to heat sink which composed of lamp body to make sure excellent heat dissipation, lead to long lifetime.
6.Adopt silicon encapsulated seaLED power supply whose body made of aluminum alloy, put it inside of aluminum body and closed attached to heat sink to make sure heat dissipated from power supply.
7.Cover made of high quality PC which enjoy high-strength, impact resistant, hot resistant, corrosion-resistant.
8.Completely seaLED to waterproof, dust-proof, corrosion-resistant.
9.Smart appearance, equip with two mounting brackets，it can be instalLED easily.
10.Rated Power 20W/30W(708mm)/40W/60W(1315mm)
Technical Parameters：
Power Consumption |
20W |
40W |
60W |
Input Voltage |
220V AC（applied for 95-265V） |
||
Frequency |
50Hz/60Hz |
||
Explosion-proof Grade |
Ex embⅡC T6 |
||
Corrosion-proof Grade |
WF2 |
||
IP Grade |
IP66 |
||
Light Effect |
≥55lm/W |
||
Beam Angle |
120° |
||
Power Factor |
≥0.90 |
||
Cable Entry |
Φ8～Φ10mm |
||
Installation Height |
2～3m |
3～5m |
3～6m |
Illuminance at 3m |
75LX |
100 LX |
130 LX |
Ambient Environment |
Temperature:-30℃-55℃；Humidity:10-90%RH(25℃) |
||
Storage Temperature |
-40℃-60℃ |
||
Lifespan |
﹥50000Hs |
||
Material |
Aluminum Alloy&PC |
||
Dimension |
L1315xW132xH82mm |
||
Net Weight |
5.5Kg |
Additional Information
| Payment Terms | T/T, L/C, Others |
|---|---|
| Minimum Order | 1 piece |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | 30% Deposit, balance before shipment. |
| FOB Port | Shenzhen |
| Loading Info | By sea/by air/by express |
| Packing Info | Length: 1315mmProduct net weight: 6KGCarton size L1370XW200XH170.G.W.: 6.5KG |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
