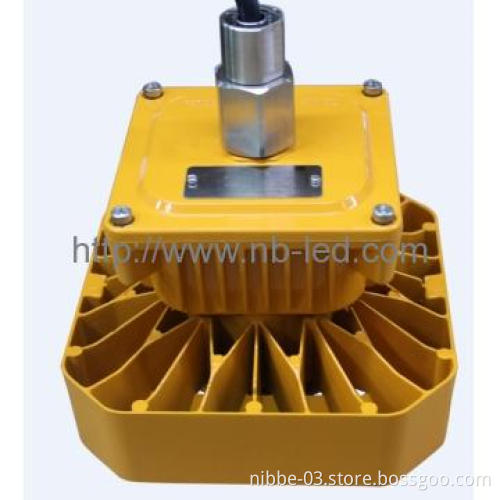

20W LED Explosion Proof Light -With Flange
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Input Voltage | AC90~220, DC24V |
|---|---|
| Rated power | 20W |
| Ex Mark | EX d II C T6/ DIP A20 TA, T6 |
| Corrosion-proof grade | WF2 |
| Light Source | LED |
| Application | Advertising Lighting, Architectural Lighting, Bridge, Car Park, Garden, Highway, Highway Lighting, Mining, Park, Petrol Station, Pooling Lighting, Sport Lighting, Sport Yard, Square, Square Lighting, Tunnel Lighting |
| IP | IP66 |
Detail Description
1.20W LED Explosion Proof Light
2.LC(UL&CSA stardard) listed for hazardous loccations in USA & CANADA. CE&RoHS listed.
3.LED Explosion Proof Light widely used in oil fields,oil refineries,offshore oil platform,power plant.
4.Patented design for heat dissipation to ensure life of light source up to 50,000 hours.
5.Two kinds of input voltage AC 90-305V and DC 24V for option.
6.Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.
7.Die casting aluminum housing, with anti-static and anti-corrosion coating, high explosion-proof degree of flameproof type; dust-proof, waterproof; lens made of tempered glass which is thermal resistance, corrosion resistance, high light transmission.
8.Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality, clear lighting effect without a double image.
9.Beautiful appearance, several types of installation methods available.
2.LC(UL&CSA stardard) listed for hazardous loccations in USA & CANADA. CE&RoHS listed.
3.LED Explosion Proof Light widely used in oil fields,oil refineries,offshore oil platform,power plant.
4.Patented design for heat dissipation to ensure life of light source up to 50,000 hours.
5.Two kinds of input voltage AC 90-305V and DC 24V for option.
6.Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.
7.Die casting aluminum housing, with anti-static and anti-corrosion coating, high explosion-proof degree of flameproof type; dust-proof, waterproof; lens made of tempered glass which is thermal resistance, corrosion resistance, high light transmission.
8.Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality, clear lighting effect without a double image.
9.Beautiful appearance, several types of installation methods available.
| Parameter | Value |
| Power Consumption | 20W/30W/40W/50W |
| Input Voltage | 90~305V or 24V DC |
| Frequency | 47-63 Hz |
| Beam Angle | 45°/60°/90°/120°/140° |
| Explosion-proof Grade | Ex IICT6 |
| Corrosion-proof Grade | WF2 |
| IP Grade | IP66 |
| Power Factor | 0.95 |
| Lamp Efficiency | 90% |
| Color Temperature | Warm white2700-4000K Pure white5000-6500K |
| Junction Temperature | 55 |
| Color Rendering IndexCRI | Ra70 |
| Light Effect | 90lm/W |
| Lifespan | 50,000Hrs |
| Material | Aluminum Alloy |
| Dimension(mm) | 200X200X202mm |
| Net Weight | 4Kg |
| Certificate | CE, RoHS, China National Explosion-proof Certificate |
Additional Information
| Payment Terms | T/T, L/C |
|---|---|
| Minimum Order | 20 |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | 30& deposit, balance before shipment. |
| FOB Port | Shenzhen |
| Loading Info | Can be delivered by epxress for small quantity.Large quantity can be delivered by Air or By sea. |
| Packing Info | Carton Size: 290X290X320mmG.W.:4.75KG |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
