Explosion Proof fixtures-50W~120W floodlights
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Input Voltage | AC90V-305V/DC24V |
|---|---|
| Input frequency | 50HZ/60HZ |
| Beam Angle | 45°/60°/90°/120°/140° |
| EX mark | Ex d II C T5/DIP A20 TA,T5 |
| Corrision-proof grade | WF2 |
| Voltage | 220V |
| Light Source | LED |
| Application | Advertising Lighting, Architectural Lighting, Bridge, Car Park, Garden, Highway, Highway Lighting, Mining, Park, Petrol Station, Pooling Lighting, Sport Lighting, Sport Yard, Square, Square Lighting, Tunnel Lighting |
| IP | IP66 |
Detail Description

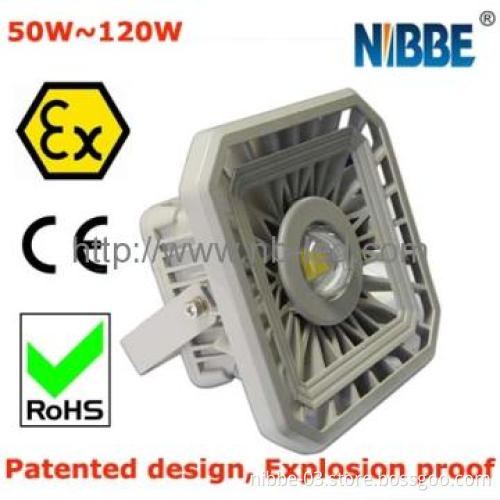

1.Explosion Proof fixtures-50W~120W floodlights
2. Bridgelux LED Chip.
3. 3years warranty
4.Patented design for heat dissipation to ensure life of light source up to 50000 hours.
5.Two kinds of input voltage AC 90-305V and DC 24V for option.
6.Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.
7.Die casting aluminum housing, with anti-static and anti-corrosion coating, high explosion-proof degree of flameproof type; dust-proof, waterproof; lens made of tempered glass which is thermal resistance, corrosion resistance, high light transmission.
8.Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality, clear lighting effect without a double image.
9.Beautiful appearance, several types of installation methods available.
Technical Parameters：
Item Name |
LED explosion proof light |
Power Consumption |
50W/60W/80W/100W/120W |
Input Voltage |
220V AC（applied for 95-265V）or 24V DC |
Frequency |
50Hz（applied for 47-63 Hz） |
Beam Angle |
45°/60°/90°/120°/140° |
Explosion-proof Grade |
Ex dⅡB T5 |
Corrosion-proof Grade |
WF2 |
IP Grade |
IP66 |
Power Factor |
＞0.95 |
Total Harmonic Current |
＜15% |
Lamp Efficiency（%） |
≥90% |
Color Temperature（K） |
Warm white：2700-4000K；Pure white：5000-6500K |
Junction Temperature（TJ）） |
＜65℃ |
Color Rendering Index（CRI） |
Ra﹥70 |
Light Effect |
﹥90lm/W |
Ambient Environment |
Temperature：-30℃—55℃；Humidity：10-90%RH(25℃) |
Storage Temperature |
-40℃-60℃ |
Lifespan |
﹥50,000Hs |
Material |
Aluminum Alloy |
Installation Height |
4~10m（flood light）/10~30m（project light） |
Dimension(mm) |
300×300×227 |
Net Weight |
6.5Kg |
Certificate |
CE、China National Explosion-proof Certificate |
Additional Information
| Payment Terms | T/T, L/C, Others |
|---|---|
| Minimum Order | 20PC |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | 30% deposit, balance before shipment. |
| FOB Port | Shenzhen |
| Loading Info | By sea/by air/by express |
| Packing Info | Product Dimension: 365X365X300mmProduct net weight: 6.5KG |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
