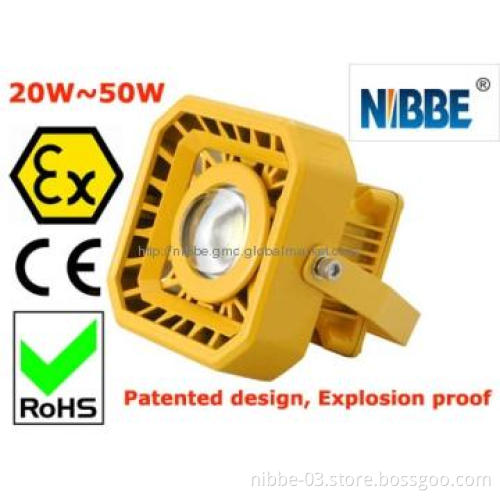

Gas starion Explosion Proof LED Light 20-40W
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Input Voltage | AC90~220, DC24V |
|---|---|
| IP | 66 |
| Rated power | 20/30/40/50W |
| Ex Mark | EX d â ¡ C T6/ DIP A20 TA, T6 |
| Corrosion-proof grade | WF2 |
| Light Source | LED Lamp |
| Application | Advertising Lighting, Architectural Lighting, Bridge, Car Park, Garden, Highway, Highway Lighting, Mining, Park, Petrol Station, Pooling Lighting, Sport Lighting, Sport Yard, Square, Square Lighting, Tunnel Lighting |
| IP | IP66 |
Detail Description
2. Gas starion Explosion Proof LED Light With CE&RoHS approval.
3 .Gas starion Explosion Proof LED Lights are widely used in oil fields,oil refineries,offshore oil platform,power plant,gas station, oil tanks.,etc.
4.Patented design for heat dissipation to ensure life of light source up to 50,000 hours.
5.Two kinds of input voltage AC 90-305V and DC 24V for option.
6.Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.
7.Die casting aluminum housing, with anti-static and anti-corrosion coating, high explosion-proof degree of flameproof type; dust-proof, waterproof; lens made of tempered glass which is thermal resistance, corrosion resistance, high light transmission.
8.Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality, clear lighting effect without a double image.
9.Beautiful appearance, several types of installation methods available.
| Parameter | Value |
| Power Consumption | 20W/30W/40W |
| Input Voltage | 220V AC（applied for 95-265V）or 24V DC |
| Frequency | 50Hz（applied for 47-63 Hz） |
| Beam Angle | 45°/60°/90°/120°/140° |
| Explosion-proof Grade | Ex dⅡCT6 |
| Corrosion-proof Grade | WF2 |
| IP Grade | IP66 |
| Power Factor | ＞0.95 |
| Lamp Efficiency（%） | ≥90% |
| Color Temperature（K） | Warm white：2700-4000K；Pure white：5000-6500K |
| Junction Temperature（TJ）） | ＜55℃ |
| Color Rendering Index（CRI） | Ra﹥70 |
| Light Effect | ﹥90lm/W |
| Ambient Environment | Temperature：-30℃—55℃；Humidity：10-90%RH(25℃) |
| Storage Temperature | -40℃-60℃ |
| Lifespan | ﹥50000Hs |
| Material | Aluminum Alloy |
| Installation Height | 2～6m（flood light）/8～20m（project light） |
| Dimension(mm) | 200×200×202 |
| Net Weight | 3Kg |
| Certificate | CE、China National Explosion-proof Certificate |
Additional Information
| Payment Terms | T/T, L/C, Western Union |
|---|---|
| Minimum Order | 50 |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| FOB Port | Shenzhen |
| Loading Info | By express, By air or By Ocean |
| Packing Info | Product deimension: 275X275X265mmProduct net weight: 3.5KGCarton Size can be customised. Carton material: Double strong corrugated carton paper. |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
