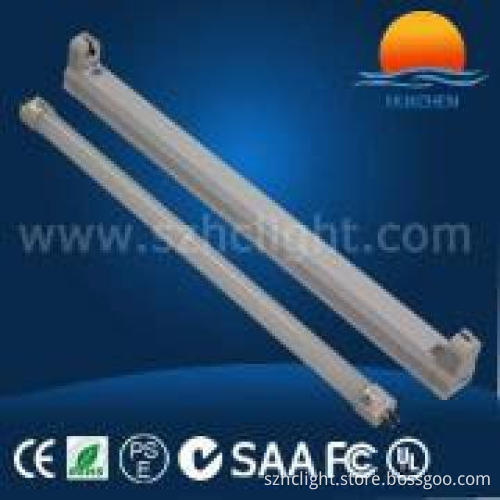

T5 led tube light 1200mm 18w with CE PSE RoHS approval

T5 led tube light
About LED Tube

Specification
Item No.	HC-T5-120-18W
Module Spec.
Ttems	Description
Housing Lampshade	PC+Aluminum
Demension	16*1980mm
LED Type	SMD 3528LED
LED Qty.	288pcs
Base Type	G5
Electric Spec.
Input voltage	AC85-265V
Power Supply Frequency	50-60Hz
Rated Power	16W
Average Life Span	50000H
CRI	74-80
PF	>0.9
Optical Spec.
Lighting color	Pure White6000-6500K Nature White4000-4500K Warm White2800-3200K Cold White >7000K
Luminous Flux(lm)	1800-2100lm
Color Temp.	3000K/4000K/6400K
Operating Temp.	-20℃-50℃
Case Temp.	MAX.80℃


    Applications:

1. Indoor lighting(livingroom,bedroom,kitchen,washroom)
2. school hopital,hotel,factories,supermaket,shopping mall,commercial complex.
3. parking lot,airport,subway station,railway station,tunnel.
4. lobby,hall,square,office.
5. residebtial/institution buildings.


    HC-LED tube Features:

*.Adapting high quality LED, such as “CREE” “OSRAM” “NICHIA” “EPISTAR” LEDs.
*.Adapting aluminum heat sink base and aluminum PCB to dissipate more heat.
*.Adapting lampshade materials with more than 90% light transmittance,
   it is available for transparent cover,milky white cover and diffusion cover.
*.Adapting constant current led driver, high power factor,low harmonic distortion,
   stable performance.
*.Adapting rotary lamp holder,easy installing.
*.It can be made into dimming and sensor effects,with soft light,no stroking.

    HC-LED Tube Advantages:

* Green Lighting:green lamp without Pb and Hg.
* Using high quality and high brightness LED as lighting source.
* Lifespan up to 50,000hours,more than 10 times the life of the traditional fluorescent.
* Energy saving and environment friendly, no noise.

     Installation instructions:

• Before installation please make sure the power is turned off.
• For magnetic ballast.when LED tubes are replaced in a standard fluorescent tube batten, the starter must be removed,and replaced by the enclosed fuse,simply and conveniently.
• If electronic ballast,it need to be by-passed by a registered electrician.
• Take out package carefully;
• Check it have any damage,don’t try to use any damaged products;
• Read the lable parameter carefully before installation and make sure the voltage&current are correct.
• Indoor use only;
• Don’t vibrate tube;
• Don’t disassemble the tube if have no authorization;
• Don’t store tubes in humidity environment.

Delivery Time:3-5workdays for sample,7-15workdays for batches.
We accept unconditional return within 10days after the receipt of goods&samples.
