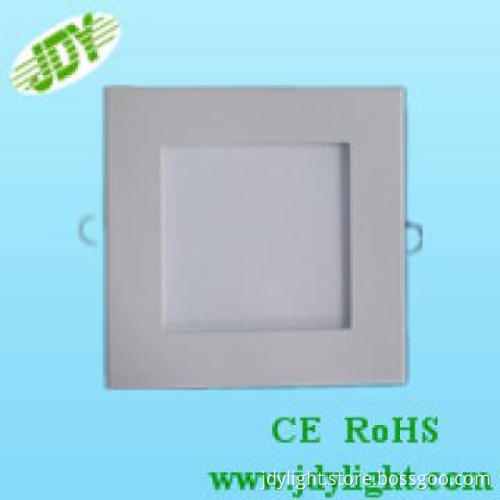

Wide Various CE RoHS 20W LED Panel Lighting

Details:

Input power	20W
Measurement	200*200mm
LED chip	Epistar/Bridgelux 3014 180pcs
Input current	28-30mA each LED
Input voltage	AC95-265V/50-60HZ
Color temperature	3000-6500K
Heat sink	Superior aluminum
Warranty	2 years
Lumens	1200-1400lm
Beam angle	120degree
CCT	White/warm white/cool white(optional)
Ra	over 70
Working environment	-50—85℃
Storage condition	-50—85℃
Certificated	CE&RoHS approved
Light decay	Less than 3% after 1000 hours constant work
Material	PC+Aluminum
Power factor	Over 0.9
Lifespan	50000hours

Related hot sales products:

Measurement	power	voltage	CCT	lumens	beam angle	LED qty	material
300*300mm	25W	AC95-265V	3000-6500K	1600-1800lm	120°	228	PC+AL
300*600mm	30W	AC95-265V	3000-6500K	1800-1900lm	120°	264	PC+AL
600*600mm	48W	AC95-265V	3000-6500K	3000-3100lm	120°	120	PC+AL
300*1200mm	48W	AC95-265V	3000-6500K	3000-3100lm	120°	120	PC+AL
600*1200mm	80W	AC95-265V	3000-6500K	5000-5100lm	120°	750	PC+AL

Features:
1.Energy saving about 70%
2.Long lifespan more than 5 years
3.No infrared rays,no ultraviolet rediation,no thermal effect
4.Ultra slim,unlimited design and various dimensions are available
5.Soft and wide light emitting
6.Special circuit design,avoiding the single broken LED influence problem
7.High efficiency constant current drive system,with heat protection system,can work under unstable voltage
8.Instant start,no flickering,no humming,no RF interference

Installation precautions:
1. This product should be installed by trained electricians.
2. Pleas make sure the transformer and the light panel disconnect with the  AC main supply.
3. The distance between the light and any flammable materials must not be less than 0.2m. The distance between the upper part of the installed light and the ceiling must not be less than 2.0cm.The light must not be installed into ceilings or walls that contain heat-insulating material. The main cable must not connect with the low voltage cable or the panel light.
4. When connecting the wiring cables to the luminaries, the brown (or black) wire is the Live wire, connect it with the terminal marked \"L\". The blue wire is Naughty wire, connect it with the terminal marked \"N\".
5. Use only the LED driver included, and do not connect the LED light panel to other loads.
6. Please don\'t disassemble the LED panel light or the power supply or the drive system to avoid any danger to user or problems to the LED panel light.
7. If there is unauthorized disassembly and maintenance, then the LED panel light and the transformer and the drive system will be out of warranty.

Notes:
In order to keep the products in good condition and safety using,please follow the indication and warning in the specification book
1.To ensure the connection to be correct and firm,and prevent from phenomenon of short-circuit and fire accident
2.To ensure the voltage of power supply within the range of working voltage
3.Forbid connecting the wires when power is on,

Packing&delivery:
Packing:standred packing or according to your requirement
Delivery:7-10 days after receiving deposit
