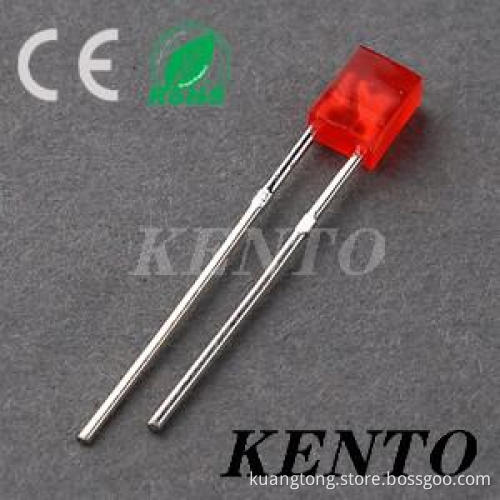

2X5mm Square Red Diffused Lens Led Lamp
  • 2X5mm Square Red Diffused Lens Led Lamp
2X5mm Square Red Diffused Lens Led Lamp

2X5mm Square Red Diffused Lens Led Lamp

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Colour Red
Gel Colour Red Diffused
Dominant Wavelength 620~630nm
Luminous Intensity 20mcd
50% Power Viewing Angle 140deg
Maximum Reverse Voltage 5V
Maximum Forward Current 50mA
Type LED
Package Type Throught Hole
Maximum Forward Voltage 1.5~2.5V
Maximum Reverse Current 1.1μΑ

Detail Description


                                       Product Model:2A5R2PD08      Colour: Red

Items Symbol Condition Min Typ Max Unit
Forward Voltage VF IF=20mA 1.5 2.1 2.55 V
Reverse Current IR VR=5V --- --- 1.1 uA
Dominant Wavelength λD IF=20mA 620 --- 661 nm
Luminous Intensity IV IF=20mA --- --- --- mcd
View angle 2θ½ IF=20mA --- 140 --- deg





































  • Our diode chip is made in square plate, advanced technologies, higher efficiency, stronger stability,senior authotity GS,CE,EMC,UL,FCC approval.
  • Our diode chip has better heat dispersion, the insulating cement has better heat conductivity, which can reduce the light attenuation effectively and prolong the product\'s life.
  • The Tin Feets have silver-plating, exclusive process, easier to weld, smoother touch, heat-resisitant.
  • High security light sources with solid-state light source, not easy to damage, seismic, impact resisitance.
  • LED light source has won the identification of national scientific and technological achievements.
  • Non-thermal radiation, no UV, to make life more comfortable.

Applications:
1.Audio equipment or instrument panels
2.General us
e for digital indicators
3.Multimedia product
4.Digital read out display
5. Indoor and outdoor commercial lighting

6. Architectural Lighting
7. General lighting
8. Automotive lights
9. Mood Lighting, LED module
10. Traffic Light
11. LCD TV / monitor backlights
12. LED display
13. Reading light, LED torch
14. Craft flashlights, headlights

Additional Information

Payment Terms L/C, T/T, Paypal, Others
Minimum Order 10000pcs
Lead Time / Delivery Time 7 Day(s)
Sample Available YES
Delivery Details 30% in advance, balance paid before copy of B/L.
FOB Port Shenzhen
Loading Info EXWAir transportationSea transportation
Packing Info Anti-static bag,1000pcs/bag,0.25kg/bag.
Target Market(s) Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
