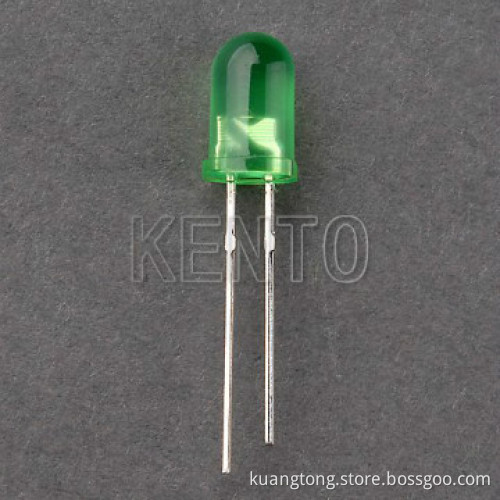

5mm Oval Green Diffused Long Feet Lens Led Diode
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Maximum Reverse Voltage | 5V |
|---|---|
| Maximum Forward Current | 50mA |
| Maximum Forward Voltage | 3.2~3.6V |
| Type | LED |
| Package Type | Throught Hole |
| Maximum Reverse Current | 1.1 |
Detail Description
5mm Oval Green Diffused Long Feet Lens Led Diode
Modle Number:5KG4HD Emtting color:Green
| Items | Symbol | Condition | Min | Typ | Max | Unit |
| Foward Voltage | VF | IF=20mA | 3.2 | --- | 3.6 | V |
| Reverse Current | IR | VR=5V | --- | --- | 1.1 | uA |
| Dominant wavelength | λD | IF=20mA | 515 | --- | 525 | nm |
| Luminous intensity | IV | IF=20mA | 1500 | --- | 2500 | mcd |
| 50% Power Viewing Angle | 2θ½ | IF=20mA | --- | 90/35 | --- | deg |
Application:
widely used in all kinds of indicator ,decoration lights,torch,daylight lamps,household appliances.
About KENTO:
KENTO is a company with over 1800 professional staffs,15years experience in LED field,our production lines:led diode,led bulb,led tube,led strip,led display ,COB and optocoupler.
Our company is following the business philosophy of \"Strive for survival on the basis of quality,strive for development on the basis of technology \'with market as orientation,with service as principle.as a big company ,we can provide you with competitive price ,good quality and best service!
Additional Information
| Payment Terms | L/C, T/T, Paypal, Others |
|---|---|
| Minimum Order | 1000PCS |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | lead time :5-10days ,according to your quantity |
| FOB Port | Shenzhen |
| Loading Info | EXWAir transportationSea transportation |
| Packing Info | 1000pcs per bag, around 0.30kg. |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
