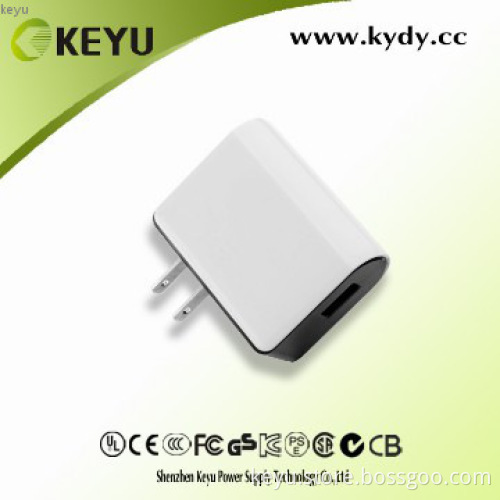

KA08-10W USB adapter 5v 2a usb travel power adapter

KA08-10W USB adapter 5v 2a usb travel power adapter


Specifications：


• Input Voltage：100~240Vac(Range:90~264Vac).
• Input Current ：0.4A max.
• Frequency：50/60Hz(Frequency range:47~63Hz).
• Output voltage：5.0-18V.
• Output current：0-2A.
• Ripple & Noise：150mV max
• Power consumption at no load：0.3W max.
• Conversion efficiency：〉70%
• Voltage regulation/Load regulation：±5%
• Hi-pot test： 3000 VAC/1min/5mA
• Leakege current： 0.25mA max.@240 VAC
• With Over-current,Over-voltage,Over-temperature, Short-circuit protection function
• Operating temperature：0~40℃
• Safety standard：UL/EN60950/GB4943
• EMC standards：EN55022 class B/FCC Part 15 class B;EN55024/A1:2001/EN61000

Products Series ：


MODEL NO	Input Voltage (Vac)	Input Frequency (Hz)	Output voltage (Vdc)	Output  Current (A)	CCC
KA08-050YYYY	100-240(AC)	50/60   (Hz)	5.0(VDC)	0-2A	CE,UL,FCC,GS,PSE,KC,CB,CCC
KA08-060YYYY	100-240(AC)	50/60   (Hz)	6.0(VDC)	0-1.6A	CE,UL,FCC,GS,PSE,KC,CB,CCC
KA08-070YYYY	100-240(AC)	50/60   (Hz)	7.0(VDC)	0-1.4A	CE,UL,FCC,GS,PSE,KC,CB,CCC
KA08-080YYYY	100-240(AC)	50/60   (Hz)	8.0(VDC)	0-1.2A	CE,UL,FCC,GS,PSE,KC,CB,CCC
KA08-090YYYY	100-240(AC)	50/60   (Hz)	9.0(VDC)	0-1.1A	CE,UL,FCC,GS,PSE,KC,CB,CCC
KA08-100YYYY	100-240(AC)	50/60   (Hz)	10.0(VDC)	0-1.0A	CE,UL,FCC,GS,PSE,KC,CB,CCC
KA08-110YYYY	100-240(AC)	50/60   (Hz)	11.0(VDC)	0-0.9A	CE,UL,FCC,GS,PSE,KC,CB,CCC
KA08-120YYYY	100-240(AC)	50/60   (Hz)	12.0(VDC)	0-0.8A	CE,UL,FCC,GS,PSE,KC,CB,CCC

  Applications:

l         Wireless communication electronics
l         Network hardware
l         Persional digitals
l         Audio&Video devices
l         Medical equipments
l         Home Appliances

  Why Us ？

We are the manufacturer ，we are the source
With more than 10 years experience in this field. 6000 Square Factory.
Provide authorized certification
Top quality ,factory & Competitive price & promptly delivery
Quality control - 100% inspection before delivery etc.
Free samples available (<=5 units)
OEM/ ODM Services are highly welcome
Flexible to meet dynamic requirements

  About Us:

As a leading manufacturer of switching power supplies ,we supply AC/DC adapter ,desktop power adapter, wall mount adapter, LED power supply, security power adapter, USB car charger, USB power adapter .

If you are interested in KY`s products, welcome to contact us for more details!
